日成A-LED隔离柱
  |
|
材 质:UL合格之NYLON66（本色）。 目录页码:B106 |
| 单位/Unit:mm
|
||

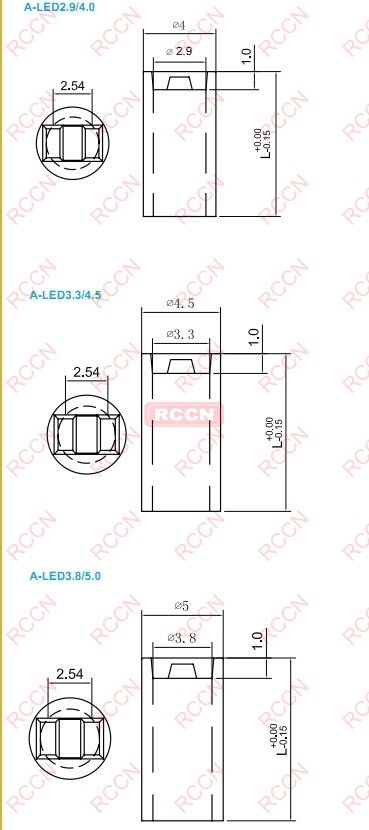

| 型号/ Item No. 内径/外径/高度 Inner dia./Outer dia./Height |
型号/ Item No. 内径/外径/高度 Inner dia./Outer dia./Height |
型号/ Item No. 内径/外径/高度 Inner dia./Outer dia./Height |
| A-LED2.9/4.0-1.5 | A-LED3.3/4.5-2.0 | A-LED3.8/5.0-1.5 |
| A-LED2.9/4.0-2.0 | A-LED3.3/4.5-2.5 | A-LED3.8/5.0-2.0 |
| A-LED2.9/4.0-2.5 | A-LED3.3/4.5-3.0 | A-LED3.8/5.0-2.5 |
| A-LED2.9/4.0-3.0 | A-LED3.3/4.5-3.5 | A-LED3.8/5.0-3.0 |
| A-LED2.9/4.0-3.5 | A-LED3.3/4.5-4.0 | A-LED3.8/5.0-3.5 |
| A-LED2.9/4.0-4.0 | A-LED3.3/4.5-4.5 | A-LED3.8/5.0-4.0 |
| A-LED2.9/4.0-4.5 | A-LED3.3/4.5-5.0 | A-LED3.8/5.0-4.5 |
| A-LED2.9/4.0-5.0 | A-LED3.3/4.5-5.5 | A-LED3.8/5.0-5.0 |
| A-LED2.9/4.0-5.5 | A-LED3.3/4.5-6.0 | A-LED3.8/5.0-5.5 |
| A-LED2.9/4.0-6.0 | A-LED3.3/4.5-6.5 | A-LED3.8/5.0-6.0 |
| A-LED2.9/4.0-6.5 | A-LED3.3/4.5-7.0 | A-LED3.8/5.0-6.5 |
| A-LED2.9/4.0-7.0 | A-LED3.3/4.5-7.5 | A-LED3.8/5.0-7.0 |
| A-LED2.9/4.0-7.5 | A-LED3.3/4.5-8.0 | A-LED3.8/5.0-7.5 |
| A-LED2.9/4.0-8.0 | A-LED3.3/4.5-8.5 | A-LED3.8/5.0-8.0 |
| A-LED2.9/4.0-8.5 | A-LED3.3/4.5-9.0 | A-LED3.8/5.0-8.5 |
| A-LED2.9/4.0-9.0 | A-LED3.3/4.5-9.5 | A-LED3.8/5.0-9.0 |
| A-LED2.9/4.0-9.5 | A-LED3.3/4.5-10.0 | A-LED3.8/5.0-9.5 |
| A-LED2.9/4.0-10.0 | A-LED3.3/4.5-10.5 | A-LED3.8/5.0-10.0 |
| A-LED2.9/4.0-10.5 | A-LED3.3/4.5-11.0 | A-LED3.8/5.0-10.5 |
| A-LED2.9/4.0-11.0 | A-LED3.3/4.5-11.5 | A-LED3.8/5.0-11.0 |
| A-LED2.9/4.0-11.5 | A-LED3.3/4.5-12.0 | A-LED3.8/5.0-11.5 |
| A-LED2.9/4.0-12.0 | A-LED3.3/4.5-12.5 | A-LED3.8/5.0-12.0 |
| A-LED2.9/4.0-12.5 | A-LED3.3/4.5-13.0 | A-LED3.8/5.0-12.5 |
| A-LED2.9/4.0-13.0 | A-LED3.3/4.5-13.5 | A-LED3.8/5.0-13.0 |
| A-LED2.9/4.0-13.5 | A-LED3.3/4.5-14.0 | A-LED3.8/5.0-13.5 |
| A-LED2.9/4.0-14.0 | A-LED3.3/4.5-14.5 | A-LED3.8/5.0-14.0 |
| A-LED2.9/4.0-14.5 | A-LED3.3/4.5-15.0 | A-LED3.8/5.0-14.5 |
| A-LED2.9/4.0-15.0 | A-LED3.3/4.5-15.5 | A-LED3.8/5.0-15.0 |
| A-LED2.9/4.0-15.5 | A-LED3.3/4.5-16.0 | A-LED3.8/5.0-15.5 |
| A-LED2.9/4.0-16.0 | A-LED3.3/4.5-16.5 | A-LED3.8/5.0-16.0 |
| A-LED2.9/4.0-16.5 | A-LED3.3/4.5-17.0 | A-LED3.8/5.0-16.5 |
| A-LED2.9/4.0-17.0 | A-LED3.3/4.5-17.5 | A-LED3.8/5.0-17.0 |
| A-LED2.9/4.0-17.5 | A-LED3.3/4.5-18.0 | A-LED3.8/5.0-17.5 |
| A-LED2.9/4.0-18.0 | A-LED3.3/4.5-18.5 | A-LED3.8/5.0-18.0 |
| A-LED2.9/4.0-18.5 | A-LED3.3/4.5-19.0 | A-LED3.8/5.0-18.5 |
| A-LED2.9/4.0-19.0 | A-LED3.3/4.5-19.5 | A-LED3.8/5.0-19.0 |
| A-LED2.9/4.0-19.5 | A-LED3.3/4.5-20.0 | A-LED3.8/5.0-19.5 |
| A-LED2.9/4.0-20.0 | A-LED3.3/4.5-20.5 | A-LED3.8/5.0-20.0 |
| A-LED2.9/4.0-20.5 | A-LED3.3/4.5-21.0 | A-LED3.8/5.0-20.5 |
| A-LED2.9/4.0-21.0 | A-LED3.3/4.5-21.5 | A-LED3.8/5.0-21.0 |
| A-LED2.9/4.0-21.5 | A-LED3.3/4.5-22.0 | A-LED3.8/5.0-21.5 |
| A-LED2.9/4.0-22.0 | -- | A-LED3.8/5.0-22.0 |
| A-LED2.9/4.0-22.5 | -- | A-LED3.8/5.0-22.5 |
| A-LED2.9/4.0-23.0 | -- | A-LED3.8/5.0-23.0 |
| A-LED2.9/4.0-23.5 | -- | A-LED3.8/5.0-23.5 |
| A-LED2.9/4.0-24.0 | -- | A-LED3.8/5.0-24.0 |
| A-LED2.9/4.0-24.5 | -- | A-LED3.8/5.0-24.5 |
| A-LED2.9/4.0-25.0 | -- | A-LED3.8/5.0-25.0 |
| A-LED2.9/4.0-25.5 | -- | A-LED3.8/5.0-25.5 |
| A-LED2.9/4.0-26.0 | -- | A-LED3.8/5.0-26.0 |
