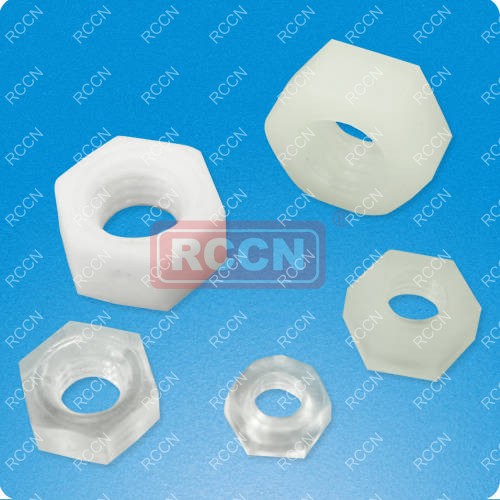

日成PN型塑胶螺母
  |
| 材质:PC(透明),PA66(本色),PP(白色),防火等级94V-2,不易老化,绝缘度高. 用途:PC板,机板及其它产品固定用. 特点:质量轻，绝缘，抗干扰，防锈，耐酸碱，耐候性强.尼龙耐扭比PC强, PP耐酸碱性强,PC透明美观。 备注:PN-3C为PC材质,PN-5N材质为NYLON66,PN-6PP材质为PP 目录页码:B42 |
| 型号 Item No. |
螺牙 A THREAD |
D mm |
B mm |
C mm |
包装 Packing |
|
| NYLON | PC或PP | |||||
| PN-2N | PN-2PC | M2×0.25 | 3.0 | 1.6 | 4.0 | 1000PCS |
| PN-3N | PN-3PC | M3×0.5 | 6.4 | 2.4 | 5.6 | |
| PN-4N | PN-4PC | M4×0.7 | 8.1 | 3.2 | 7.0 | |
| PN-5N | PN-5PC | M5×0.8 | 9.2 | 4.0 | 8.0 | |
| PN-6N | PN-6PP | M6×1.0 | 11.5 | 5.0 | 10.0 | 500PCS |
| PN-8N | PN-8PP | M8×1.25 | 14.5 | 6.4 | 12.8 | |
| PN-10N | PN-10PP | M10×1.5 | 19.2 | 8.0 | 16.7 | |
| PN-12N | PN-12PP | M12×1.75 | 11 | 19 | 22 | |
| PN-16N | PN-16PP | M16×2.0 | 12 | 24 | 27 | |
| PN-18N | PN-18PP | M18×2.0 | 13 | 26 | 29 | |
| PN-20N | PN-20PP | M20×2.0 | 14.1 | 29 | 39 | |
