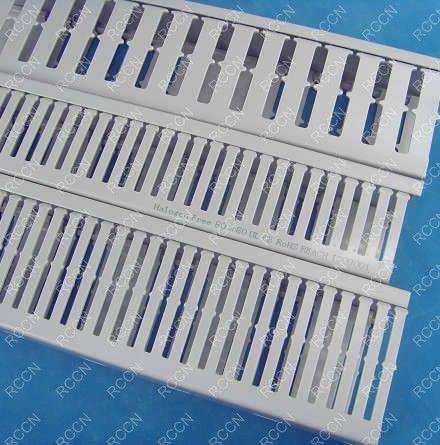

日成VDRHF/HVDRHF型无卤线槽

日成VDRHF/HVDRHF型无卤线槽     日成VDRHF/HVDRHF型无卤线槽



日成VDRHF/HVDRHF型无卤线槽

产品材质:采用无卤素硬质料制成,环保无污染,不含铅等有毒物。
产品认证:原料UL.欧洲CE,欧洲环保RoHS,REACH。
防火等级:UL94V-0,低烟无卤,遇火不燃烧,防火性及绝缘性特佳。
产品构造:由槽底及槽盖组成。
颜       色 :灰色.乳白色.蓝色,浅灰色
工作温度 :静态-40°C持续高温至110°C。
*无卤原料采用PCABS制成。
产品用途：半导体制造,造船,核能发电厂，石油平台，电梯，机车及地铁，风能发电平台，温度及环境恶劣等行业。
更多选择:可按需求生产定制其它长度.
无卤线槽以槽盖槽底组合后外部宽高为准
表格如没有你所需要的规格，我司可以开发设计供应！
目录页码:C33-C36
日成VDRHF/HVDRHF型无卤线槽





型号Item No.

宽*高

W*H

孔宽

Q

齿宽

P

装箱

/M
灰色Gray 乳白色White 蓝色Blue 黑色Black
VDR1616F/HF VDR1616FW/HF VDR1616FE/HF VDR1616FB/HF 16*16 8 10 300M
VDR2516F/HF VDR2516FW/HF VDR2516FE/HF VDR2516FB/HF 25*16 8 10 260M
VDR1520F/HF VDR1520FW/HF VDR1520FE/HF VDR1520FB/HF 15*20 8.5 12 260M
VDR2020F/HF VDR2020FW/HF VDR2020FE/HF VDR2020FB/HF 20*20 8.5 12 240M
VDR4020F/HF VDR4020FW/HF VDR4020FE/HF VDR4020FB/HF 40*20 8 12 140M
VDR1525F/HF VDR1525FW/HF VDR1525FE/HF VDR1525FB/HF 15*25 8 12 260M
VDR2025F/HF VDR2025FW/HF VDR2025FE/HF VDR2025FB/HF 20*25 8 12 200M
VDR2525F/HF VDR2525FW/HF VDR2525FE/HF VDR2525FB/HF 25*25 8 12 200M
VDR3025F/HF VDR3025FW/HF VDR3025FE/HF VDR3025FB/HF 30*25 8 12 160M
VDR4025F/HF VDR4025FW/HF VDR4025FE/HF VDR4025FB/HF 40*25 8 12 100M
VDR5025F/HF VDR5025FW/HF VDR5025EF/HF VDR5025FB/HF 50*25 8 12 100M
VDR1530F/HF VDR1530FW/HF VDR1530FE/HF VDR1530FB/HF 15*30 8 12 180M
VDR2030F/HF VDR2030FW/HF VDR2030FE/HF VDR2030FB/HF 20*30 8 12 130M
VDR2530F/HF VDR2530FW/HF VDR2530FE/HF VDR2530FB/HF 25*30 8 12 130M
VDR3030F/HF VDR3030FW/HF VDR3030FE/HF VDR3030FB/HF 30*30 8 12 140M
VDR4030F/HF VDR4030FW/HF VDR4030FE/HF VDR4030FB/HF 40*30 8 12 100M
VDR5030F/HF VDR5030FW/HF VDR5030FE/HF VDR5030FB/HF 50*30 8 12 80M
VDR6030F/HF VDR6030FW/HF VDR6030FE/HF VDR6030FB/HF 60*30 8 12 60M
VDR2233F/HF VDR2233FW/HF VDR2233FE/HF VDR2233FB/HF 22*33 8 12 160M
VDR3333F/HF VDR3333FW/HF VDR3333FE/HF VDR3333FB/HF 33*33 8 12 160M
VDR2035F/HF VDR2035FW/HF VDR2035FE/HF VDR2035FB/HF 20*35 8 12 100M
VDR3535F/HF VDR3535FW/HF VDR3535FE/HF VDR3535FB/HF 35*35 8 12 112M
VDR5035F/HF VDR5035FW/HF VDR5035FE/HF VDR5035FB/HF 50*35 8 12 88M
VDR2040F/HF VDR2040FW/HF VDR2040FE/HF VDR2040FB/HF 20*40 8 12 110M
VDR2540F/HF VDR2540FW/HF VDR2540FE/HF VDR2540FB/HF 25*40 8 12 112M
VDR3540F/HF VDR3540FW/HF VDR3540FE/HF VDR3540FB/HF 35*40 8 12 100M
VDR4040F/HF VDR4040FW/HF VDR4040FE/HF VDR4040FB/HF 40*40 8 12 100M
VDR6040F/HF VDR6040FW/HF VDR6040FE/HF VDR6040FB/HF 60*40 8 12 68M
VDR8040F/HF VDR8040FW/HF VDR8040FE/HF VDR8040FB/HF 80*40 8 12 48M
VDR10040F/HF VDR10040FW/HF VDR10040FE/HF VDR10040FB/HF 100*40 8 12 32M
VDR12040F/HF VDR12040FW/HF VDR12040FE/HF VDR12040FB/HF 100*40 8 12
/
VDR2545F/HF VDR2545FW/HF VDR2545FE/HF VDR2545FB/HF 25*45 8 12 104M
VDR3345F/HF VDR3345FW/HF VDR3345FE/HF VDR3345FB/HF 33*45 8 12 108M
VDR4545F/HF VDR4545FW/HF VDR4545FE/HF VDR4545FB/HF 45*45 8 12 72M
VDR6545F/HF VDR6545FW/HF VDR6545FE/HF VDR6545FB/HF 65*45 8 12 56M
VDR2050F/HF VDR2050FW/HF VDR2050FE/HF VDR2050FB/HF 20*50 8 12 100M
VDR2550F/HF VDR2550FW/HF VDR2550FE/HF VDR2550FB/HF 25*50 8 12 100M
VDR3050F/HF VDR3050FW/HF VDR3050FE/HF VDR3050FB/HF 30*50 8 12 84M
VDR3550F/HF VDR3550FW/HF VDR3550FE/HF VDR3550FB/HF 35*50 8 12 80M
VDR4050F/HF VDR4050FW/HF VDR4050FE/HF VDR4050FB/HF 40*50 8 12 68M
VDR4550F/HF VDR4550FW/HF VDR4550FE/HF VDR4550FB/HF 45*50 8 12 60M
VDR5050F/HF VDR5050FW/HF VDR5050FE/HF VDR5050FB/HF 50*50 8 12 50M
VDR5550F/HF VDR5550FW/HF VDR5550FE/HF VDR5550FB/HF 55*50 8 12 48M
VDR6050F/HF VDR6050FW/HF VDR6050FE/HF VDR6050FB/HF 60*50 8 12 48M
VDR7550F/HF VDR7550FW/HF VDR7550FE/HF VDR7550FB/HF 75*50 8 12 40M
VDR8050F/HF VDR8050FW/HF VDR8050FE/HF VDR8050FB/HF 80*50 8 12 40M
VDR10050F/HF VDR10050FW/HF VDR10050FE/HF VDR10050FB/HF 100*50 8 12 26M
VDR12555F/HF VDR12555FW/HF VDR12555FE/HF VDR12555FB/HF 125*55 8 12 26M
VDR2060F/HF VDR2060FW/HF VDR2060FE/HF VDR2060FB/HF 20*60 8 12 100M
VDR2560F/HF VDR2560FW/HF VDR2560FE/HF VDR2560FB/HF 25*60 8 12 100M
VDR3060F/HF VDR3060FW/HF VDR3060FE/HF VDR3060FB/HF 30*60 8 12 80M
VDR3560F/HF VDR3560FW/HF VDR3560FE/HF VDR3560FB/HF 35*60 8 12 78M
VDR4060F/HF VDR4060FW/HF VDR4060FE/HF VDR4060FB/HF 40*60 8 12 60M
VDR4560F/HF VDR4560FW/HF VDR4560FE/HF VDR4560FB/HF 45*60 8 12 30M
VDR5060F/HF VDR5060FW/HF VDR5060FE/HF VDR5060FB/HF 50*60 8 12 60M
VDR6060F/HF VDR6060FW/HF VDR6060FE/HF VDR6060FB/HF 60*60 8 12 48M
VDR8060F/HF VDR8060FW/HF VDR8060FE/HF VDR8060FB/HF 80*60 8 12 36M
VDR10060F/HF VDR10060FW/HF VDR10060FE/HF VDR10060FB/HF 100*60 8 12 28M
VDR11060F/HF VDR11060FW/HF VDR11060FE/HF VDR11060FB/HF 110*60 8 12 48M
VDR12060F/HF VDR12060FW/HF VDR12060FE/HF VDR12060FB/HF 120*60 8 12 48M
VDR15060F/HF VDR15060FW/HF VDR15060FE/HF VDR15060FB/HF 150*60 8 12 16M
VDR2565F/HF VDR2565FW/HF VDR2565FE/HF VDR2565FB/HF 25*65 8 12 88M
VDR3365F/HF VDR3365FW/HF VDR3365FE/HF VDR3365FB/HF 33*65 8 12 80M
VDR4565F/HF VDR4565FW/HF VDR4565FE/HF VDR4565FB/HF 45*65 8 12 52M
VDR6565F/HF VDR6565FW/HF VDR6565FE/HF VDR6565FB/HF 65*65 8 12 44M
VDR7265F/HF VDR7265FW/HF VDR7265FE/HF VDR7265FB/HF 72*65 8 12 42M
VDR2575F/HF VDR2575FW/HF VDR2575FE/HF VDR2575FB/HF 25*75 8 12
/
VDR5075F/HF VDR5075FW/HF VDR5075FE/HF VDR5075FB/HF 50*75 8 12 42M
VDR7575F/HF VDR7575FW/HF VDR7575FE/HF VDR7575FB/HF 75*75 8 12 40M
VDR10075F/HF VDR10075FW/HF VDR10075FE/HF VDR10075FB/HF 100*75 8 12 24M
VDR2580F/HF VDR2580FW/HF VDR2580FE/HF VDR2580FB/HF 25*80 8 12 72M
VDR3080F/HF VDR3080FW/HF VDR3080FE/HF VDR3080FB/HF 30*80 8 12 56M
VDR3580F/HF VDR3580FW/HF VDR3580FE/HF VDR3580FB/HF 35*80 8 12 56M
VDR4080F/HF VDR4080FW/HF VDR4080FE/HF VDR4080FB/HF 40*80 8 12 48M
VDR4580F/HF VDR4580FW/HF VDR4580FE/HF VDR4580FB/HF 45*80 8 12 40M
VDR5080F/HF VDR5080FW/HF VDR5080FE/HF VDR5080FB/HF 50*80 8 12 40M
VDR5580F/HF VDR5580FW/HF VDR5580FE/HF VDR5580FB/HF 55*80 8 12 32M
VDR6080F/HF VDR6080FW/HF VDR6080FE/HF VDR6080FB/HF 60*80 8 12 32M
VDR8080F/HF VDR8080FW/HF VDR8080FE/HF VDR8080FB/HF 80*80 8 12 24M
VDR10080F/HF VDR10080FW/HF VDR10080FE/HF VDR10080FB/HF 100*80 8 12 24M
VDR12080F/HF VDR12080FW/HF VDR12080FE/HF VDR12080FB/HF 120*80 8 12 16M
VDR14080F/HF VDR14080FW/HF VDR14080FE/HF VDR14080FB/HF 140*80 8 12 16M
VDR16080F/HF VDR16080FW/HF VDR16080FE/HF VDR16080FB/HF 160*80 8 12
/
VDR25100F/HF VDR25100FW/HF VDR25100FE/HF VDR25100FB/HF 25*100 8 12 60M
VDR33100F/HF VDR33100FW/HF VDR33100FE/HF VDR33100FB/HF 33*100 8 12 44M
VDR40100F/HF VDR40100FW/HF VDR40100FE/HF VDR40100FB/HF 40*100 8 12 40M
VDR50100F/HF VDR50100FW/HF VDR50100FE/HF VDR50100FB/HF 50*100 8 12 40M
VDR60100F/HF VDR60100FW/HF VDR60100FE/HF VDR60100FB/HF 60*100 8 12 32M
VDR70100F/HF VDR70100FW/HF VDR70100FE/HF VDR70100FB/HF 70*100 8 12 24M
VDR75100F/HF VDR75100FW/HF VDR75100FE/HF VDR75100FB/HF 75*100 8 12 24M
VDR80100F/HF VDR80100FW/HF VDR80100FE/HF VDR80100FB/HF 80*100 8 12 24M
VDR100100F/HF VDR100100FW/HF VDR100100FE/HF VDR100100FB/HF 100*100 8 12 24M
VDR120100F/HF VDR120100FW/HF VDR120100FE/HF VDR120100FB/HF 120*100 8 12 16M
VDR150100F/HF VDR150100FW/HF VDR150100FE/HF VDR150100FB/HF 150*100 8 12 16M
VDR160100F/HF VDR160100FW/HF VDR160100FE/HF VDR160100FB/HF 160*100 8 12
/
VDR100130F/HF VDR100130FW/HF VDR100130FE/HF VDR100130FB/HF 100*130 8 12
/
VDR200100F/HF VDR200100FW/HF VDR200100FE/HF VDR200100FB/HF 200*100 8 12 16M
VDR200150F/HF VDR200150FW/HF VDR200150FE/HF VDR200150FB/HF 200*150 8 12 16M





型号Item No.

宽*高

W*H

孔宽

Q

齿宽

P

装箱

/M
灰色Gray 乳白色White 蓝色Blue 黑色Black
HVDR1616F/HF HVDR1616FW/HF HVDR1616FE/HF HVDR1616FB/HF 16*16 5 5 300M
HVDR2516F/HF HVDR2516FW/HF HVDR2516FE/HF HVDR2516FB/HF 25*16 5 5 260M
HVDR1520F/HF HVDR1520FW/HF HVDR1520FE/HF HVDR1520FB/HF 15*20 4 6 260M
HVDR2020F/HF HVDR2020FW/HF HVDR2020FE/HF HVDR2020FB/HF 20*20 4 6 240M
HVDR4020F/HF HVDR4020FW/HF HVDR4020FE/HF HVDR4020FB/HF 40*20 4 6 140M
HVDR1525F/HF HVDR1525FW/HF HVDR1525FE/HF HVDR1525FB/HF 15*25 5 5 260M
HVDR2025F/HF HVDR2025FW/HF HVDR2025FE/HF HVDR2025FB/HF 20*25 4 6 200M
HVDR2525F/HF HVDR2525FW/HF HVDR2525FE/HF HVDR2525FB/HF 25*25 4 6 200M
HVDR3025F/HF HVDR3025FW/HF HVDR3025FE/HF HVDR3025FB/HF 30*25 4 6 160M
HVDR4025F/HF HVDR4025FW/HF HVDR4025FE/HF HVDR4025FB/HF 40*25 4 6 100M
HVDR5025F/HF HVDR5025FW/HF HVDR5025EF/HF HVDR5025FB/HF 50*25 4 6 100M
HVDR1530F/HF HVDR1530FW/HF HVDR1530FE/HF HVDR1530FB/HF 15*30 4 6 180M
HVDR2030F/HF HVDR2030FW/HF HVDR2030FE/HF HVDR2030FB/HF 20*30 4 6 130M
HVDR2530F/HF HVDR2530FW/HF HVDR2530FE/HF HVDR2530FB/HF 25*30 4 6 130M
HVDR3030F/HF HVDR3030FW/HF HVDR3030FE/HF HVDR3030FB/HF 30*30 4 6 140M
HVDR4030F/HF HVDR4030FW/HF HVDR4030FE/HF HVDR4030FB/HF 40*30 4 6 100M
HVDR5030F/HF HVDR5030FW/HF HVDR5030FE/HF HVDR5030FB/HF 50*30 4 5 80M
HVDR6030F/HF HVDR6030FW/HF HVDR6030FE/HF HVDR6030FB/HF 60*30 4 6 60M
HVDR2233F/HF HVDR2233FW/HF HVDR2233FE/HF HVDR2233FB/HF 22*33 4 6 160M
HVDR3333F/HF HVDR3333FW/HF HVDR3333FE/HF HVDR3333FB/HF 33*33 4 6 160M
HVDR2035F/HF HVDR2035FW/HF HVDR2035FE/HF HVDR2035FB/HF 20*35 4 6 100M
HVDR3535F/HF HVDR3535FW/HF HVDR3535FE/HF HVDR3535FB/HF 35*35 4 6 112M
HVDR5035F/HF HVDR5035FW/HF HVDR5035FE/HF HVDR5035FB/HF 50*35 4 6 88M
HVDR2040F/HF HVDR2040FW/HF HVDR2040FE/HF HVDR2040FB/HF 20*40 4 6 110M
HVDR2540F/HF HVDR2540FW/HF HVDR2540FE/HF HVDR2540FB/HF 25*40 4 6 112M
HVDR3540F/HF HVDR3540FW/HF HVDR3540FE/HF HVDR3540FB/HF 35*40 4 6 100M
HVDR4040F/HF HVDR4040FW/HF HVDR4040FE/HF HVDR4040FB/HF 40*40 4 6 100M
HVDR6040F/HF HVDR6040FW/HF HVDR6040FE/HF HVDR6040FB/HF 60*40 4 6 68M
HVDR8040F/HF HVDR8040FW/HF HVDR8040FE/HF HVDR8040FB/HF 80*40 4 6 48M
HVDR10040F/HF HVDR10040FW/HF HVDR10040FE/HF HVDR10040FB/HF 100*40 4 6 32M
HVDR12040F/HF HVDR12040FW/HF HVDR12040FE/HF HVDR12040FB/HF 100*40 4 6
/
HVDR2545F/HF HVDR2545FW/HF HVDR2545FE/HF HVDR2545FB/HF 25*45 4 6 104M
HVDR3345F/HF HVDR3345FW/HF HVDR3345FE/HF HVDR3345FB/HF 33*45 4 6 108M
HVDR4545F/HF HVDR4545FW/HF HVDR4545FE/HF HVDR4545FB/HF 45*45 4 6 72M
HVDR6545F/HF HVDR6545FW/HF HVDR6545FE/HF HVDR6545FB/HF 65*45 4 6 56M
HVDR2050F/HF HVDR2050FW/HF HVDR2050FE/HF HVDR2050FB/HF 20*50 4 6 100M
HVDR2550F/HF HVDR2550FW/HF HVDR2550FE/HF HVDR2550FB/HF 25*50 4 6 100M
HVDR3050F/HF HVDR3050FW/HF HVDR3050FE/HF HVDR3050FB/HF 30*50 4 6 84M
HVDR3550F/HF HVDR3550FW/HF HVDR3550FE/HF HVDR3550FB/HF 35*50 4 6 80M
HVDR4050F/HF HVDR4050FW/HF HVDR4050FE/HF HVDR4050FB/HF 40*50 4 6 68M
HVDR4550F/HF HVDR4550FW/HF HVDR4550FE/HF HVDR4550FB/HF 45*50 4 6 60M
HVDR5050F/HF HVDR5050FW/HF HVDR5050FE/HF HVDR5050FB/HF 50*50 4 6 50M
HVDR5550F/HF HVDR5550FW/HF HVDR5550FE/HF HVDR5550FB/HF 55*50 4 6 48M
HVDR6050F/HF HVDR6050FW/HF HVDR6050FE/HF HVDR6050FB/HF 60*50 4 6 48M
HVDR7550F/HF HVDR7550FW/HF HVDR7550FE/HF HVDR7550FB/HF 75*50 4 6 40M
HVDR8050F/HF HVDR8050FW/HF HVDR8050FE/HF HVDR8050FB/HF 80*50 4 6 40M
HVDR10050F/HF HVDR10050FW/HF HVDR10050FE/HF HVDR10050FB/HF 100*50 4 6 26M
HVDR12555F/HF HVDR12555FW/HF HVDR12555FE/HF HVDR12555FB/HF 125*55 4 6 26M
HVDR2060F/HF HVDR2060FW/HF HVDR2060FE/HF HVDR2060FB/HF 20*60 4 6 100M
HVDR2560F/HF HVDR2560FW/HF HVDR2560FE/HF HVDR2560FB/HF 25*60 4 6 100M
HVDR3060F/HF HVDR3060FW/HF HVDR3060FE/HF HVDR3060FB/HF 30*60 4 6 80M
HVDR3560F/HF HVDR3560FW/HF HVDR3560FE/HF HVDR3560FB/HF 35*60 4 6 78M
HVDR4060F/HF HVDR4060FW/HF HVDR4060FE/HF HVDR4060FB/HF 40*60 4 6 60M
HVDR4560F/HF HVDR4560FW/HF HVDR4560FE/HF HVDR4560FB/HF 45*60 4 6 30M
HVDR5060F/HF HVDR5060FW/HF HVDR5060FE/HF HVDR5060FB/HF 50*60 4 6 60M
HVDR6060F/HF HVDR6060FW/HF HVDR6060FE/HF HVDR6060FB/HF 60*60 4 6 48M
HVDR8060F/HF HVDR8060FW/HF HVDR8060FE/HF HVDR8060FB/HF 80*60 4 6 36M
HVDR10060F/HF HVDR10060FW/HF HVDR10060FE/HF HVDR10060FB/HF 100*60 4 6 28M
HVDR11060F/HF HVDR11060FW/HF HVDR11060FE/HF HVDR11060FB/HF 110*60 4 6 48M
HVDR12060F/HF HVDR12060FW/HF HVDR12060FE/HF HVDR12060FB/HF 120*60 4 6 48M
HVDR15060F/HF HVDR15060FW/HF HVDR15060FE/HF HVDR15060FB/HF 150*60 4 6 16M
HVDR2565F/HF HVDR2565FW/HF HVDR2565FE/HF HVDR2565FB/HF 25*65 4 6 88M
HVDR3365F/HF HVDR3365FW/HF HVDR3365FE/HF HVDR3365FB/HF 33*65 4 6 80M
HVDR4565F/HF HVDR4565FW/HF HVDR4565FE/HF HVDR4565FB/HF 45*65 4 6 52M
HVDR6565F/HF HVDR6565FW/HF HVDR6565FE/HF HVDR6565FB/HF 65*65 4 6 44M
HVDR7265F/HF HVDR7265FW/HF HVDR7265FE/HF HVDR7265FB/HF 72*65 4 6 42M
HVDR2575F/HF HVDR2575FW/HF HVDR2575FE/HF HVDR2575FB/HF 25*75 4 6
/
HVDR5075F/HF HVDR5075FW/HF HVDR5075FE/HF HVDR5075FB/HF 50*75 4 6 42M
HVDR7575F/HF HVDR7575FW/HF HVDR7575FE/HF HVDR7575FB/HF 75*75 4 6 40M
HVDR10075F/HF HVDR10075FW/HF HVDR10075FE/HF HVDR10075FB/HF 100*75 4 6 24M
HVDR2580F/HF HVDR2580FW/HF HVDR2580FE/HF HVDR2580FB/HF 25*80 4 6 72M
HVDR3080F/HF HVDR3080FW/HF HVDR3080FE/HF HVDR3080FB/HF 30*80 4 6 56M
HVDR3580F/HF HVDR3580FW/HF HVDR3580FE/HF HVDR3580FB/HF 35*80 4 6 56M
HVDR4080F/HF HVDR4080FW/HF HVDR4080FE/HF HVDR4080FB/HF 40*80 4 6 48M
HVDR4580F/HF HVDR4580FW/HF HVDR4580FE/HF HVDR4580FB/HF 45*80 4 6 40M
HVDR5080F/HF HVDR5080FW/HF HVDR5080FE/HF HVDR5080FB/HF 50*80 4 6 40M
HVDR5580F/HF HVDR5580FW/HF HVDR5580FE/HF HVDR5580FB/HF 55*80 4 6 32M
HVDR6080F/HF HVDR6080FW/HF HVDR6080FE/HF HVDR6080FB/HF 60*80 4 6 32M
HVDR8080F/HF HVDR8080FW/HF HVDR8080FE/HF HVDR8080FB/HF 80*80 4 6 24M
HVDR10080F/HF HVDR10080FW/HF HVDR10080FE/HF HVDR10080FB/HF 100*80 4 6 24M
HVDR12080F/HF HVDR12080FW/HF HVDR12080FE/HF HVDR12080FB/HF 120*80 4 6 16M
HVDR14080F/HF HVDR14080FW/HF HVDR14080FE/HF HVDR14080FB/HF 140*80 4 6 16M
HVDR16080F/HF HVDR16080FW/HF HVDR16080FE/HF HVDR16080FB/HF 160*80 4 6
/
HVDR25100F/HF HVDR25100FW/HF HVDR25100FE/HF HVDR25100FB/HF 25*100 4 6 60M
HVDR33100F/HF HVDR33100FW/HF HVDR33100FE/HF HVDR33100FB/HF 33*100 4 6 44M
HVDR40100F/HF HVDR40100FW/HF HVDR40100FE/HF HDR40100FB/HF 40*100 4 6 40M
HVDR50100F/HF HVDR50100FW/HF HVDR50100FE/HF HVDR50100FB/HF 50*100 4 6 40M
HVDR60100F/HF HVDR60100FW/HF HVDR60100FE/HF HVDR60100FB/HF 60*100 4 6 32M
HVDR70100F/HF HVDR70100FW/HF HVDR70100FE/HF HVDR70100FB/HF 70*100 4 6 24M
HVDR75100F/HF HVDR75100FW/HF HVDR75100FE/HF HVDR75100FB/HF 75*100 4 6 24M
HVDR80100F/HF HVDR80100FW/HF HVDR80100FE/HF HVDR80100FB/HF 80*100 4 6 24M
HVDR100100F/HF HVDR100100FW/HF HVDR100100FE/HF HVDR100100FB/HF 100*100 4 6 24M
HVDR120100F/HF HVDR120100FW/HF HVDR120100FE/HF HVDR120100FB/HF 120*100 4 6 16M
HVDR150100F/HF HVDR150100FW/HF HVDR150100FE/HF HVDR150100FB/HF 150*100 4 6 16M
HVDR160100F/HF HVDR160100FW/HF HVDR160100FE/HF HVDR160100FB/HF 160*100 4 6
/
HVDR100130F/HF HVDR100130FW/HF HVDR100130FE/HF HVDR100130FB/HF 100*130 4 6
/
HVDR200100F/HF HVDR200100FW/HF HVDR200100FE/HF HVDR200100FB/HF 200*100 4 6 16M
HVDR200150F/HF HVDR200150FW/HF HVDR200150FE/HF HVDR200150FB/HF 200*150 4 6 16M


日成VDRHF/HVDRHF型无卤线槽

日成VDRHF/HVDRHF型无卤线槽

日成VDRHF/HVDRHF型无卤线槽



日成VDRHF/HVDRHF型无卤线槽

日成VDRHF/HVDRHF型无卤线槽





日成VDRHF/HVDRHF型无卤线槽





日成VDRHF/HVDRHF型无卤线槽  日成VDRHF/HVDRHF型无卤线槽


线槽及包装纸箱效果图




日成优质导轨



日成VDRHF/HVDRHF型无卤线槽        日成VDRHF/HVDRHF型无卤线槽


日成VDRHF/HVDRHF型无卤线槽

日成VDRHF/HVDRHF型无卤线槽



日成VDRHF/HVDRHF型无卤线槽

日成VDRHF/HVDRHF型无卤线槽

日成VDRHF/HVDRHF型无卤线槽



产品材质:TS采用优质高强度冷轧钢电镀,LS采用优质高强度铝合金。
产品标准:欧洲EN50022
工作温度:-40°C持续高温至100°C
使用方法:固定于面板后即可安装电器。
产品特性: 具美观及抗重压之功能,尺寸十分精确,耐腐蚀。
定制长度或孔位有起订量要求
目录页码:C61-C62





型号 Item No.
外宽/外高/厚度/长度-孔宽长
 		 电镀/材质 每支长度 包装/箱
din导轨 钢质导轨
TS-35/7.5系列
TS-35/7.5/1.0/1M-615 彩锌冷轧钢 1M 50M
TS-35/7.5/1.0/1M-515 彩锌冷轧钢 1M 50M
TS-35/7.5/1.0/1M-525 彩锌冷轧钢 1M 50M
TS-35/7.5/1.0/1M/W-615 环保白锌冷轧钢 1M 50M
TS-35/7.5/1.0/1M/W-515 环保白锌冷轧钢 1M 50M
TS-35/7.5/1.0/1M/W-525 环保白锌冷轧钢 1M 50M
TS-35/7.5/1.0/2M-615 彩锌冷轧钢 2M 100M
TS-35/7.5/1.0/2M-515 彩锌冷轧钢 2M 100M
TS-35/7.5/1.0/2M-525 彩锌冷轧钢 2M 100M
TS-35/7.5/1.0/2M/W-615 环保白锌冷轧钢 2M 100M
TS-35/7.5/1.0/2M/W-515 环保白锌冷轧钢 2M 100M
TS-35/7.5/1.0/2M/W-525 环保白锌冷轧钢 2M 100M
TS-35/7.5/1.0/1M-N 彩锌冷轧钢-无底孔 1M 50M
TS-35/7.5/1.0/1M/W-N 环保白锌冷轧钢-无底孔 1M 50M
TS-35/7.5/1.0/2M--N 彩锌冷轧钢-无底孔 2M 100M
TS-35/7.5/1.0/2M/W-N 环保白锌冷轧钢-无底孔 2M 100M
TS-35/15系列
TS-35/15/1.5/1M-615 彩锌冷轧钢 1M 30M
TS-35/15/1.5/1M/W-615 环保白锌冷轧钢 1M 30M
TS-35/15/1.5/2M-615 彩锌冷轧钢 2M 60M
TS-35/15/1.5/2M/W-615 环保白锌冷轧钢 2M 60M
TS-35/15/1.5/1M-N 彩锌冷轧钢-无底孔 1M 30M
TS-35/15/1.5/1M/W-N 环保白锌冷轧钢-无底孔 1M 30M
TS-35/15/1.5/2M-N 彩锌冷轧钢-无底孔 2M 60M
TS-35/15/1.5/2M/W-N 环保白锌冷轧钢-无底孔 2M 60M
TS-15/5.5系列
TS-15/5.5/1.0/1M-412 彩锌冷轧钢 1M 100M
TS-15/5.5/1.0/2M-412 彩锌冷轧钢 2M 200M
TS-15/5.5/1.0/1M/W-412 环保白锌冷轧钢 1M 100M
TS-15/5.5/1.0/2M/W-412 环保白锌冷轧钢 2M 200M
TS-15/5.5/1.0/1M-N 彩锌冷轧钢-无底孔 1M 100M
TS-15/5.5/1.0/2M-N 彩锌冷轧钢-无底孔 2M 200M
TS-15/5.5/1.0/1M/W-N 环保白锌冷轧钢-无底孔 1M 100M
TS-15/5.5/1.0/2M/W-N 环保白锌冷轧钢-无底孔 2M 200M
din导轨 铝合金导轨
LSC-35/7.5/1.1系列
LSC-35/7.5/1.1/1M 环保铝合金 1M 100M
LSC-35/7.5/1.1/2M 环保铝合金 2M 100M
LSC-35/7.5/1.1/1M-无底孔 环保铝合金 1M 100M
LSC-35/7.5/1.1/2M-无底孔 环保铝合金 2M 100M
LS-35/7.5/1.5系列
LS-35/7.5/1.5/1M 环保铝合金 1M 100M
LS-35/7.5/1.5/2M 环保铝合金 2M 100M
LS-35/7.5/1.5/1M-N 环保铝合金-无底孔 1M 100M
LS-35/7.5/1.5/2M-N 环保铝合金-无底孔 2M 100M
LS-35/15/1.5系列
LS-35/15/1.5/1M 环保铝合金 1M 30M
LS-35/15/1.5/2M 环保铝合金 2M 60M
LS-35/15/1.5/1M-N 环保铝合金-无底孔 1M 30M
LS-35/15/1.5/2M-N 环保铝合金-无底孔 2M 60M



型号 Item No.
外宽/外高/厚度/长度-孔宽长
 		 电镀/材质 每支长度 包装/箱
不锈钢导轨
TS-35/7.5/1.0/1M/304-615 不锈钢导轨 304材质 1M 50M
TS-35/7.5/1.0/2M/304-615 不锈钢导轨 304材质 2M 100M









 日成VDRHF/HVDRHF型无卤线槽

日成VDRHF/HVDRHF型无卤线槽



日成VDRHF/HVDRHF型无卤线槽



日成VDRHF/HVDRHF型无卤线槽



 日成VDRHF/HVDRHF型无卤线槽

日成VDRHF/HVDRHF型无卤线槽



日成VDRHF/HVDRHF型无卤线槽





0
