RCCN VDR Wide SLot Wiring Duct

  RCCN VDR Wide SLot Wiring Duct

RCCN VDR Wide SLot Wiring Duct



Wide slot/finger design provides greater sidewall rigidity and can  be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
Standard  Length:2M/PCS
RCCN VDR Wide SLot Wiring Duct



Item No.

W*H

Q

 P

    Wire
capability
/2.0sp

PACK
Gray White Blue Black
VDR2580 VDR2580W VDR2580E VDR2580B 25*80 8 12 100~120pcs

72M
VDR3080 VDR3080W VDR3080E VDR3080B 30*80 8 12 110~125pcs 56M
VDR3580 VDR3580W VDR3580E VDR3580B 35*80 8 12 110~130pcs 56M
VDR4080 VDR4080W VDR4080E VDR4080B 40*80 8 12 140~160pcs 48M
VDR4580 VDR4580W VDR4580E VDR4580B 45*80 8 12 140~160pcs 40M
VDR5080 VDR5080W VDR5080E VDR5080B 50*80 8 12 160~180pcs 40M
VDR5580 VDR5580W VDR5580E VDR5580B 55*80 8 12 160~180pcs 32M
VDR6080 VDR6080W VDR6080E VDR6080B 60*80 8 12 180~210pcs 32M
VDR8080 VDR8080W VDR8080E VDR8080B 80*80 8 12 240~290pcs 24M
VDR10080 VDR10080W VDR10080E VDR10080B 100*80 8 12 260~350pcs 24M
VDR12080 VDR12080W VDR12080E VDR12080B 120*80 8 12 280~380pcs 16M
VDR14080 VDR14080W VDR14080E VDR14080B 140*80 8 12 350~450pcs 16M
VDR25100 VDR25100W VDR25100E VDR25100B 25*100 8 12 110~160pcs 60M
VDR33100 VDR33100W VDR33100E VDR33100B 33*100 8 12 130~165pcs 44M
VDR40100 VDR40100W VDR40100E VDR40100B 40*100 8 12 130~175pcs 40M
VDR50100 VDR50100W VDR50100E VDR50100B 50*100 8 12 220~250pcs 40M
VDR60100 VDR60100W VDR60100E VDR60100B 60*100 8 12 240~290pcs 32M
VDR70100 VDR70100W VDR70100E VDR70100B 70*100 8 12 240~290pcs 32M
VDR75100 VDR75100W VDR75100E VDR75100B 75*100 8 12 260~350pcs 24M
VDR80100 VDR80100W VDR80100E VDR80100B 80*100 8 12 260~350pcs 24M
VDR100100 VDR100100W VDR100100E VDR100100B 100*100 8 12 300~400pcs 24M
VDR120100 VDR120100W VDR120100E VDR120100B 120*100 8 12 350~450pcs 16M
VDR150100 VDR150100W VDR150100E VDR150100B 150*100 8 12 400~650pcs 16M




RCCN VDR Wide SLot Wiring Duct



RCCN VDR Wide SLot Wiring Duct



RCCN VDR Wide SLot Wiring Duct



RCCN VDR Wide SLot Wiring Duct








RCCN  Din Rails



RCCN VDR Wide SLot Wiring Duct        RCCN VDR Wide SLot Wiring Duct


RCCN VDR Wide SLot Wiring Duct

RCCN VDR Wide SLot Wiring Duct



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton

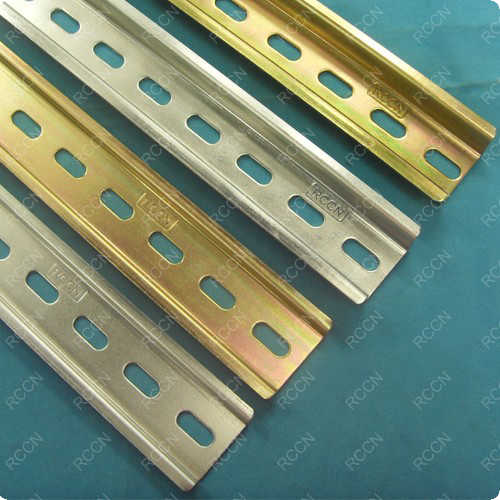

TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M

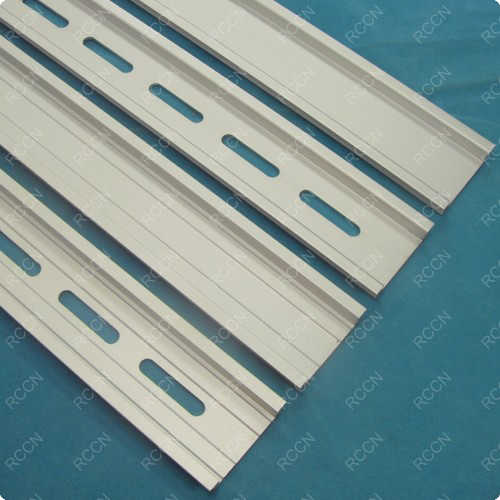

LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M
