Narrow Slot Wiring Duct HVDRT

Narrow Slot Wiring Duct HVDRT



Narrow Slot Wiring Duct HVDRT

• Made of halogen free material and verified with IEC 60754-2
test method (test on gases evolved during combustion of
electric cables)
• UL Recognized continuous use temperature: 95°C (203°F)
• UL94 Flammability Rating of V-0
• Narrow slot/finger design
• Provided with DIN 43 659 mounting holes
• Metric sizing and finger progression
• Duct and cover packaged together in 2 meter lengths

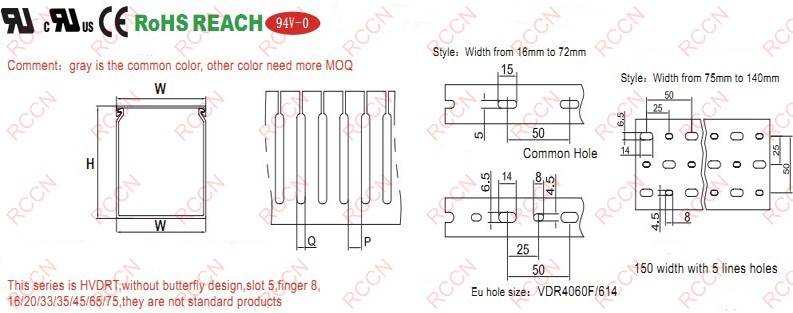

Narrow Slot Wiring Duct HVDRT






Item No.



W*H



Q



P

Wire capability/2.0sp

/M
Gray White Blue Black
HVDR2020T4 HVDR2020T4W HVDR2020T4E HVDR2020T4B 20*20 4 6 10~20pcs 240M
HVDR4020T4 HVDR4020T4W HVDR4020T4E HVDR4020T4B 40*20 4 6 12~28pcs 140M
HVDR2025T4 HVDR2025T4W HVDR2025T4E HVDR2025T4B 20*20 4 6 5~15pcs 200M
HVDR2525T4 HVDR2525T4W HVDR2525T4E HVDR2525T4B 25*25 4 6 10~25pcs 200M
HVDR3025T4 HVDR3025T4W HVDR3025T4E HVDR3025T4B 30*25 4 6 12~28pcs 160M
HVDR5025T4 HVDR5025T4W HVDR5025T4E HVDR5025T4B 50*25 4 6 20~30pcs 100M
HVDR2530T4 HVDR2530T4W HVDR2530T4E HVDR2530T4B 25*30 4 6 25~35pcs 160M
HVDR3030T4 HVDR3030T4W HVDR3030T4E HVDR3030T4B 30*30 4 6 25~35pcs 140M
HVDR4030T4 HVDR4030T4W HVDR4030T4E HVDR4030T4B 40*30 4 6 30~40pcs 100M
*HVDR3333T4 HVDR3333T4W HVDR3333T4E HVDR3333T4B 33*33 4 6 35~45pcs 160M
HVDR2035T4 HVDR2035T4W HVDR2035T4E HVDR2035T4B 20*35 4 6 30~40pcs 100M
HVDR3535T4 HVDR3535T4W HVDR3535T4E HVDR3535T4B 35*35 4 6 35~45pcs 112M
HVDR5035T4 HVDR5035T4W HVDR5035T4E HVDR5035T4B 50*35 4 6 40~60pcs 88M
*HVDR2040T4 HVDR2040T4W HVDR2040T4E HVDR2040T4B 20*40 4 6 16~22pcs 110M
HVDR2540T4 HVDR2540T4W HVDR2540T4E HVDR2540T4B 25*40 4 6 20~25pcs 112M
HVDR4040T4 HVDR404T4W HVDR4040T4E HVDR4040T4B 40*40 4 6 60~70pcs 100M
HVDR6040T4 HVDR6040T4W HVDR6040T4E HVDR6040T4B 60*40 4 6 100~115pcs 68M
HVDR8040T4 HVDR8040T4W HVDR8040T4E HVDR8040T4B 80*40 4 6 120~135pcs 48M
HVDR10040T4 HVDR10040T4W HVDR10040T4E HVDR10040T4B 100*40 4 6 120~135pcs 32M
HVDR2545T4 HVDR2545T4W HVDR2545T4E HVDR2545T4B 25*45 4 6 20~25pcs 104M
HVDR3345T4 HVDR3345T4W HVDR3345T4E HVDR3345T4B 33*45 4 6 40~55pcs 108M
HVDR4545T4 HVDR4545T4W HVDR4545T4E HVDR4545T4B 45*45 4 6 60~70pcs 72M
HVDR6545T4 HVDR6545T4W HVDR6545T4E HVDR6545T4B 65*45 4 6 110~120pcs 56M
*HVDR2050T4 HVDR2050T4W HVDR2050T4E HVDR2050T4B 20*50 4 6 18~28pcs 100M
HVDR2550T4 HVDR2550T4W HVDR2550T4E HVDR2550T4B 25*50 4 6 20~30pcs 100M
HVDR3050T4 HVDR3050T4W HVDR3050T4E HVDR3050T4B 30*50 4 6 25~40pcs 84M
HVDR3550T4 HVDR3550T4W HVDR3550T4E HVDR3550T4B 35*50 4 6 40~60pcs 80M
HVDR4050T4 HVDR4050T4W HVDR4050T4E HVDR4050T4B 40*50 4 6 60~70pcs 68M
HVDR4550T4 HVDR4550T4W HVDR4550T4E HVDR4550T4B 45*50 4 6 70~80pcs 60M
HVDR5050T4 HVDR5050T4W HVDR5050T4E HVDR5050T4B 50*50 4 6 80~90pcs 50M
HVDR5550T4 HVDR5550T4W HVDR5550T4E HVDR5550T4B 55*50 4 6 80~90pcs 48M
HVDR6050T4 HVDR6050T4W HVDR6050T4E HVDR6050T4B 60*50 4 6 100~120pcs 48M
HVDR7550T4 HVDR7550T4W HVDR7550T4E HVDR7550T4B 75*50 4 6 120~140pcs ?
HVDR8050T4 HVDR8050T4W HVDR8050T4E HVDR8050T4B 80*50 4 6 160~180pcs 40M
HVDR10050T4 HVDR10050T4W HVDR1005T4E HVDR10050T4B 100*50 4 6 200~250pcs 26M
HVDR12555T4 HVDR12555T4W HVDR12555T4E HVDR12555T4B 125*55 4 6 220~270pcs 20M
HVDR2060T4 HVDR2060T4W HVDR2060T4E HVDR2060T4B 20*60 4 6 35~45pcs 100M
HVDR2560T4 HVDR2560T4W HVDR2560T4E HVDR2560T4B 25*60 4 6 40~50pcs 100M
HVDR3060T4 HVDR3060T4W HVDR3060T4E HVDR3060T4B 30*60 4 6 60~80pcs 80M
HVDR3560T4 HVDR3560T4W HVDR3560T4E HVDR3560T4B 35*60 4 6 90~105pcs 78M
HVDR4060T4 HVDR4060T4W HVDR4060T4E HVDR4060T4B 40*60 4 6 100~115pcs 60M
HVDR4560T4 HVDR4560T4W HVDR4560T4E HVDR4560T4B 45*60 4 6 110~125pcs 30M
HVDR5060T4 HVDR5060T4W HVDR5060T4E HVDR5060T4B 50*60 4 6 120~135pcs 60M
HVDR6060T4 HVDR6060T4W HVDR6060T4E HVDR6060T4B 60*60 4 6 120~135pcs 48M
HVDR8060T4 HVDR8060T4W HVDR8060T4E HVDR8060T4B 80*60 4 6 180~210pcs 36M
HVDR10060T4 HVDR10060T4W HVDR10060T4E HVDR10060T4B 100*60 4 6 240~290pcs 28M
HVDR11060T4 HVDR11060T4W HVDR11060T4E HVDR11060T4B 110*60 4 6 250~300pcs 48M
*HVDR12060T4 HVDR12060T4W HVDR12060T4E HVDR12060T4B 120*60 4 6 260~320pcs 48M
HVDR15060T4 HVDR15060T4W HVDR15060T4E HVDR15060T4B 150*60 4 6 300~360pcs 16M
HVDR2565T4 HVDR2565T4W HVDR2565T4E HVDR2565T4B 25*65 4 6 40~50pcs 88M
HVDR3365T4 HVDR3365T4W HVDR3365T4E HVDR3365T4B 33*65 4 6 40~70pcs 80M
HVDR4565T4 HVDR4565T4W HVDR4565T4E HVDR4565T4B 45*65 4 6 110~120pcs 52M
HVDR6565T4 HVDR6565T4W HVDR6565T4E HVDR6565T4B 65*65 4 6 180~200pcs 44M
HVDR7265T4 HVDR7265T4W HVDR7265T4E HVDR7265T4B 72*65 4 6 180~230pcs 42M
HVDR5075T4 HVDR5075T4W HVDR5075T4E HVDR5075T4B 50*75 4 6 180~210pcs 42M
HVDR7575T4 HVDR7575T4W HVDR7575T4E HVDR7575T4B 75*75 4 6 200~240pcs 40M
HVDR10075T4 HVDR10075T4W HVDR10075T4E HVDR10075T4B 100*75 4 6 240~280pcs ?
HVDR2580T4 HVDR2580T4W HVDR2580T4E HVDR2580T4B 25*80 4 6 100~120pcs 72M
HVDR3080T4 HVDR3080T4W HVDR3080T4E HVDR3080T4B 30*80 4 6 110~125pcs 56M
HVDR3580T4 HVDR3580T4W HVDR3580T4E HVDR3580T4B 35*80 4 6 110~130pcs 56M
HVDR4080T4 HVDR4080T4W HVDR4080T4E HVDR4080T4B 40*80 4 6 140~160pcs 48M
HVDR4580T4 HVDR4580T4W HVDR4580T4E HVDR4580T4B 45*80 4 6 140~160pcs 40M
HVDR5080T4 HVDR5080T4W HVDR5080T4E HVDR5080T4B 50*80 4 6 160~180pcs 40M
HVDR5580T4 HVDR5580T4W HVDR5580T4E HVDR5580T4B 55*80 4 6 160~180pcs 32M
HVDR6080T4 HVDR6080T4W HVDR6080T4E HVDR6080T4B 60*80 4 6 180~210pcs 32M
HVDR8080T4 HVDR8080T4W HVDR8080T4E HVDR8080T4B 80*80 4 6 240~290pcs 24M
HVDR10080T4 HVDR10080T4W HVDR10080T4E HVDR10080T4B 100*80 4 6 260~350pcs 24M
HVDR12080T4 HVDR12080T4W HVDR12080T4E HVDR12080T4B 120*80 4 6 280~380pcs 16M
HVDR14080T4 HVDR14080T4W HVDR14080T4E HVDR14080T4B 140*80 4 6 350~450pcs 16M
HVDR25100T4 HVDR25100T4W HVDR25100T4E HVDR25100T4B 25*100 4 6 110~160pcs 60M
HVDR33100T4 HVDR33100T4W HVDR33100T4E HVDR33100T4B 33*100 4 6 130~175pcs 44M
HVDR40100T4 HVDR40100T4W HVDR40100T4E HVDR40100T4B 40*100 4 6 130~175pcs 40M
HVDR50100T4 HVDR50100T4W HVDR50100T4E HVDR50100T4B 50*100 4 6 220~250pcs 40M
HVDR60100T4 HVDR60100T4W HVDR60100T4E HVDR60100T4B 60*100 4 6 240~290pcs 32M
HVDR70100T4 HVDR70100T4W HVDR70100T4E HVDR70100T4B 70*100 4 6 250~310pcs 24M
HVDR75100T4 HVDR75100T4W HVDR75100T4E HVDR75100T4B 75*100 4 6 260~350pcs 24M
HVDR80100T4 HVDR80100T4W HVDR80100T4E HVDR80100T4B 80*100 4 6 260~350pcs 24M
HVDR100100T4 HVDR100100T4W HVDR100100T4E HVDR100100T4B 100*100 4 6 300~400pcs 24M
HVDR120100T4 HVDR120100T4W HVDR120100T4E HVDR120100T4B 120*100 4 6 350~450pcs 16M
HVDR150100T4 HVDR150100T4W HVDR150100T4E HVDR150100T4B 150*100 4 6 400~650pcs 16M
*HVDR200100T4 HVDR200100T4W HVDR200100T4E HVDR200100T4B 200*100 4 6 600~800pcs 16M
HVDR100130T4 HVDR100130T4W HVDR100130T4E HVDR100130T4B 100*130 4 6 350~450pcs 16M
*HVDR200150T4 HVDR200150T4W HVDR200150T4E HVDR200150T4B 200*150 4 6 900~1200pcs 16M





Item No.



W*H



Q



P

Wire capability/2.0sp
Gray White Blue Black
HVDR1616F/HF HVDR1616FW/HF HVDR1616FE/HF HVDR1616FB/HF 16*16 5 5 3-10pcs
HVDR2516F/HF HVDR2516FW/HF HVDR2516FE/HF HVDR2516FB/HF 25*16 5 5 8-12pcs
HVDR1520F/HF HVDR1520FW/HF HVDR1520FE/HF HVDR1520FB/HF 15*20 4 6 8-12pcs
HVDR2020F/HF HVDR2020FW/HF HVDR2020FE/HF HVDR2020FB/HF 20*20 4 6 10-20pcs
HVDR4020F/HF HVDR4020FW/HF HVDR4020FE/HF HVDR4020FB/HF 40*20 4 6 15-30pcs
HVDR1525F/HF HVDR1525FW/HF HVDR1525FE/HF HVDR1525FB/HF 15*25 5 5 5-15pcs
HVDR2025F/HF HVDR2025FW/HF HVDR2025FE/HF HVDR2025FB/HF 20*25 4 6 5-15pcs
HVDR2525F/HF HVDR2525FW/HF HVDR2525FE/HF HVDR2525FB/HF 25*25 4 6 10-25pcs
HVDR3025F/HF HVDR3025FW/HF HVDR3025FE/HF HVDR3025FB/HF 30*25 4 6 12-28pcs
HVDR4025F/HF HVDR4025FW/HF HVDR4025FE/HF HVDR4025FB/HF 40*25 4 6 20-35pcs
HVDR5025F/HF HVDR5025FW/HF HVDR5025EF/HF HVDR5025FB/HF 50*25 4 6 12-28pcs
HVDR1530F/HF HVDR1530FW/HF HVDR1530FE/HF HVDR1530FB/HF 15*30 4 6 8-15pcs
HVDR2030F/HF HVDR2030FW/HF HVDR2030FE/HF HVDR2030FB/HF 20*30 4 6 25-35pcs
HVDR2530F/HF HVDR2530FW/HF HVDR2530FE/HF HVDR2530FB/HF 25*30 4 6 25-35pcs
HVDR3030F/HF HVDR3030FW/HF HVDR3030FE/HF HVDR3030FB/HF 30*30 4 6 35-35pcs
HVDR4030F/HF HVDR4030FW/HF HVDR4030FE/HF HVDR4030FB/HF 40*30 4 6 30-40pcs
HVDR5030F/HF HVDR5030FW/HF HVDR5030FE/HF HVDR5030FB/HF 50*30 4 5 40-50pcs
HVDR6030F/HF HVDR6030FW/HF HVDR6030FE/HF HVDR6030FB/HF 60*30 4 6 50-60pcs
HVDR2233F/HF HVDR2233FW/HF HVDR2233FE/HF HVDR2233FB/HF 22*33 4 6 25-35pcs
HVDR3333F/HF HVDR3333FW/HF HVDR3333FE/HF HVDR3333FB/HF 33*33 4 6 35-45pcs
HVDR2035F/HF HVDR2035FW/HF HVDR2035FE/HF HVDR2035FB/HF 20*35 4 6 30-40pcs
HVDR3535F/HF HVDR3535FW/HF HVDR3535FE/HF HVDR3535FB/HF 35*35 4 6 40-50pcs
HVDR5035F/HF HVDR5035FW/HF HVDR5035FE/HF HVDR5035FB/HF 50*35 4 6 40-60pcs
HVDR2040F/HF HVDR2040FW/HF HVDR2040FE/HF HVDR2040FB/HF 20*40 4 6 16-22pcs
HVDR2540F/HF HVDR2540FW/HF HVDR2540FE/HF HVDR2540FB/HF 25*40 4 6 20-35pcs
HVDR3540F/HF HVDR3540FW/HF HVDR3540FE/HF HVDR3540FB/HF 35*40 4 6 30-45pcs
HVDR4040F/HF HVDR4040FW/HF HVDR4040FE/HF HVDR4040FB/HF 40*40 4 6 60-70pcs
HVDR6040F/HF HVDR6040FW/HF HVDR6040FE/HF HVDR6040FB/HF 60*40 4 6 100-115pcs
HVDR8040F/HF HVDR8040FW/HF HVDR8040FE/HF HVDR8040FB/HF 80*40 4 6 120-135pcs
HVDR10040F/HF HVDR10040FW/HF HVDR10040FE/HF HVDR10040FB/HF 100*40 4 6 120-135pcs
HVDR12040F/HF HVDR12040FW/HF HVDR12040FE/HF HVDR12040FB/HF 100*40 4 6 140-155pcs
HVDR2545F/HF HVDR2545FW/HF HVDR2545FE/HF HVDR2545FB/HF 25*45 4 6 20-25pcs
HVDR3345F/HF HVDR3345FW/HF HVDR3345FE/HF HVDR3345FB/HF 33*45 4 6 40-55pcs
HVDR4545F/HF HVDR4545FW/HF HVDR4545FE/HF HVDR4545FB/HF 45*45 4 6 60-70pcs
HVDR6545F/HF HVDR6545FW/HF HVDR6545FE/HF HVDR6545FB/HF 65*45 4 6 110-120pcs
HVDR2050F/HF HVDR2050FW/HF HVDR2050FE/HF HVDR2050FB/HF 20*50 4 6 18-28pcs
HVDR2550F/HF HVDR2550FW/HF HVDR2550FE/HF HVDR2550FB/HF 25*50 4 6 20-30pcs
HVDR3050F/HF HVDR3050FW/HF HVDR3050FE/HF HVDR3050FB/HF 30*50 4 6 25-40pcs
HVDR3550F/HF HVDR3550FW/HF HVDR3550FE/HF HVDR3550FB/HF 35*50 4 6 40-60pcs
HVDR4050F/HF HVDR4050FW/HF HVDR4050FE/HF HVDR4050FB/HF 40*50 4 6 60-70pcs
HVDR4550F/HF HVDR4550FW/HF HVDR4550FE/HF HVDR4550FB/HF 45*50 4 6 70-80pcs
HVDR5050F/HF HVDR5050FW/HF HVDR5050FE/HF HVDR5050FB/HF 50*50 4 6 80-90pcs
HVDR5550F/HF HVDR5550FW/HF HVDR5550FE/HF HVDR5550FB/HF 55*50 4 6 85-95pcs
HVDR6050F/HF HVDR6050FW/HF HVDR6050FE/HF HVDR6050FB/HF 60*50 4 6 100-120pcs
HVDR7550F/HF HVDR7550FW/HF HVDR7550FE/HF HVDR7550FB/HF 75*50 4 6 150-170pcs
HVDR8050F/HF HVDR8050FW/HF HVDR8050FE/HF HVDR8050FB/HF 80*50 4 6 160-180pcs
HVDR10050F/HF HVDR10050FW/HF HVDR10050FE/HF HVDR10050FB/HF 100*50 4 6 200-250pcs
HVDR12555F/HF HVDR12555FW/HF HVDR12555FE/HF HVDR12555FB/HF 125*55 4 6 220-270pcs
HVDR2060F/HF HVDR2060FW/HF HVDR2060FE/HF HVDR2060FB/HF 20*60 4 6 35-40pcs
HVDR2560F/HF HVDR2560FW/HF HVDR2560FE/HF HVDR2560FB/HF 25*60 4 6 40-50pcs
HVDR3060F/HF HVDR3060FW/HF HVDR3060FE/HF HVDR3060FB/HF 30*60 4 6 50-80pcs
HVDR3560F/HF HVDR3560FW/HF HVDR3560FE/HF HVDR3560FB/HF 35*60 4 6 90-105pcs
HVDR4060F/HF HVDR4060FW/HF HVDR4060FE/HF HVDR4060FB/HF 40*60 4 6 100-115pcs
HVDR4560F/HF HVDR4560FW/HF HVDR4560FE/HF HVDR4560FB/HF 45*60 4 6 110-125pcs
HVDR5060F/HF HVDR5060FW/HF HVDR5060FE/HF HVDR5060FB/HF 50*60 4 6 120-135pcs
HVDR6060F/HF HVDR6060FW/HF HVDR6060FE/HF HVDR6060FB/HF 60*60 4 6 120-135pcs
HVDR8060F/HF HVDR8060FW/HF HVDR8060FE/HF HVDR8060FB/HF 80*60 4 6 180-210pcs
HVDR10060F/HF HVDR10060FW/HF HVDR10060FE/HF HVDR10060FB/HF 100*60 4 6 240-290pcs
HVDR11060F/HF HVDR11060FW/HF HVDR11060FE/HF HVDR11060FB/HF 110*60 4 6 250-300pcs
HVDR12060F/HF HVDR12060FW/HF HVDR12060FE/HF HVDR12060FB/HF 120*60 4 6 260-320pcs
HVDR15060F/HF HVDR15060FW/HF HVDR15060FE/HF HVDR15060FB/HF 150*60 4 6 300-360pcs
HVDR2565F/HF HVDR2565FW/HF HVDR2565FE/HF HVDR2565FB/HF 25*65 4 6 40-50pcs
HVDR3365F/HF HVDR3365FW/HF HVDR3365FE/HF HVDR3365FB/HF 33*65 4 6 40-70pcs
HVDR4565F/HF HVDR4565FW/HF HVDR4565FE/HF HVDR4565FB/HF 45*65 4 6 110-120pcs
HVDR6565F/HF HVDR6565FW/HF HVDR6565FE/HF HVDR6565FB/HF 65*65 4 6 180-200pcs
HVDR7265F/HF HVDR7265FW/HF HVDR7265FE/HF HVDR7265FB/HF 72*65 4 6 180-230pcs
HVDR2575F/HF HVDR2575FW/HF HVDR2575FE/HF HVDR2575FB/HF 25*75 4 6 180-210pcs
HVDR5075F/HF HVDR5075FW/HF HVDR5075FE/HF HVDR5075FB/HF 50*75 4 6 180-210pcs
HVDR7575F/HF HVDR7575FW/HF HVDR7575FE/HF HVDR7575FB/HF 75*75 4 6 200-240pcs
HVDR10075F/HF HVDR10075FW/HF HVDR10075FE/HF HVDR10075FB/HF 100*75 4 6 250-290pcs
HVDR2580F/HF HVDR2580FW/HF HVDR2580FE/HF HVDR2580FB/HF 25*80 4 6 100-120pcs
HVDR3080F/HF HVDR3080FW/HF HVDR3080FE/HF HVDR3080FB/HF 30*80 4 6 110-125pcs
HVDR3580F/HF HVDR3580FW/HF HVDR3580FE/HF HVDR3580FB/HF 35*80 4 6 110-130pcs
HVDR4080F/HF HVDR4080FW/HF HVDR4080FE/HF HVDR4080FB/HF 40*80 4 6 140-160pcs
HVDR4580F/HF HVDR4580FW/HF HVDR4580FE/HF HVDR4580FB/HF 45*80 4 6 140-160pcs
HVDR5080F/HF HVDR5080FW/HF HVDR5080FE/HF HVDR5080FB/HF 50*80 4 6 160-180pcs
HVDR5580F/HF HVDR5580FW/HF HVDR5580FE/HF HVDR5580FB/HF 55*80 4 6 160-180pcs
HVDR6080F/HF HVDR6080FW/HF HVDR6080FE/HF HVDR6080FB/HF 60*80 4 6 180-210pcs
HVDR8080F/HF HVDR8080FW/HF HVDR8080FE/HF HVDR8080FB/HF 80*80 4 6 240-290pcs
HVDR10080F/HF HVDR10080FW/HF HVDR10080FE/HF HVDR10080FB/HF 100*80 4 6 260-350pcs
HVDR12080F/HF HVDR12080FW/HF HVDR12080FE/HF HVDR12080FB/HF 120*80 4 6 280-380pcs
HVDR14080F/HF HVDR14080FW/HF HVDR14080FE/HF HVDR14080FB/HF 140*80 4 6 350-450pcs
HVDR16080F/HF HVDR16080FW/HF HVDR16080FE/HF HVDR16080FB/HF 160*80 4 6 450-550pcs
HVDR25100F/HF HVDR25100FW/HF HVDR25100FE/HF HVDR25100FB/HF 25*100 4 6 110-160pcs
HVDR33100F/HF HVDR33100FW/HF HVDR33100FE/HF HVDR33100FB/HF 33*100 4 6 130-165pcs
HVDR40100F/HF HVDR40100FW/HF HVDR40100FE/HF HDR40100FB/HF 40*100 4 6 130-175pcs
HVDR50100F/HF HVDR50100FW/HF HVDR50100FE/HF HVDR50100FB/HF 50*100 4 6 220-250pcs
HVDR60100F/HF HVDR60100FW/HF HVDR60100FE/HF HVDR60100FB/HF 60*100 4 6 240-290pcs
HVDR70100F/HF HVDR70100FW/HF HVDR70100FE/HF HVDR70100FB/HF 70*100 4 6 250-340pcs
HVDR75100F/HF HVDR75100FW/HF HVDR75100FE/HF HVDR75100FB/HF 75*100 4 6 260-350pcs
HVDR80100F/HF HVDR80100FW/HF HVDR80100FE/HF HVDR80100FB/HF 80*100 4 6 260-350pcs
HVDR100100F/HF HVDR100100FW/HF HVDR100100FE/HF HVDR100100FB/HF 100*100 4 6 300-400pcs
HVDR120100F/HF HVDR120100FW/HF HVDR120100FE/HF HVDR120100FB/HF 120*100 4 6 350-450pcs
HVDR150100F/HF HVDR150100FW/HF HVDR150100FE/HF HVDR150100FB/HF 150*100 4 6 400-650pcs
HVDR160100F/HF HVDR160100FW/HF HVDR160100FE/HF HVDR160100FB/HF 160*100 4 6 500-750pcs
HVDR100130F/HF HVDR100130FW/HF HVDR100130FE/HF HVDR100130FB/HF 100*130 4 6 350-450pcs
HVDR200100F/HF HVDR200100FW/HF HVDR200100FE/HF HVDR200100FB/HF 200*100 4 6 600-800pcs
HVDR200150F/HF HVDR200150FW/HF HVDR200150FE/HF HVDR200150FB/HF 200*150 4 6 900-1200pcs




Narrow Slot Wiring Duct HVDRT





Narrow Slot Wiring Duct HVDRT  Narrow Slot Wiring Duct HVDRT




RCCN  Din Rails







Narrow Slot Wiring Duct HVDRT        Narrow Slot Wiring Duct HVDRT


Narrow Slot Wiring Duct HVDRT

Narrow Slot Wiring Duct HVDRT



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M



 Narrow Slot Wiring Duct HVDRT Narrow Slot Wiring Duct HVDRT

Narrow Slot Wiring Duct HVDRT



Narrow Slot Wiring Duct HVDRT




0
