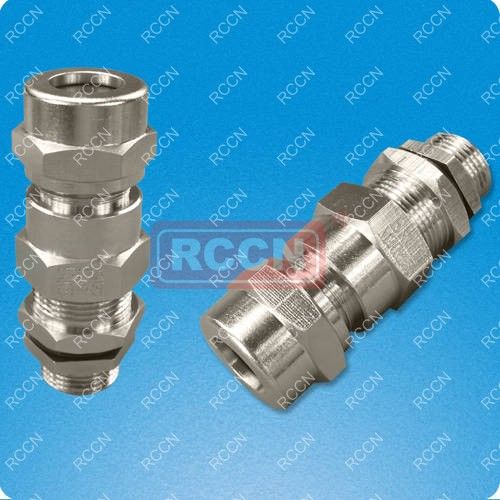

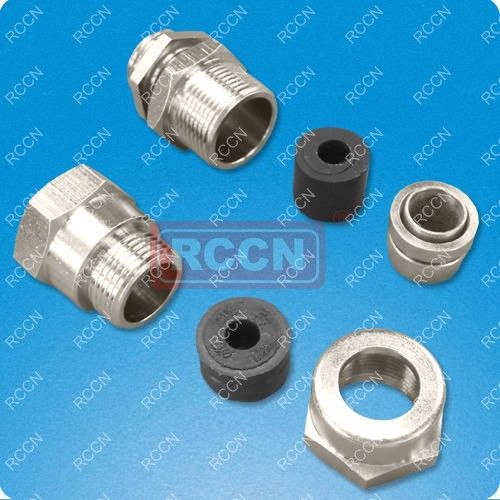

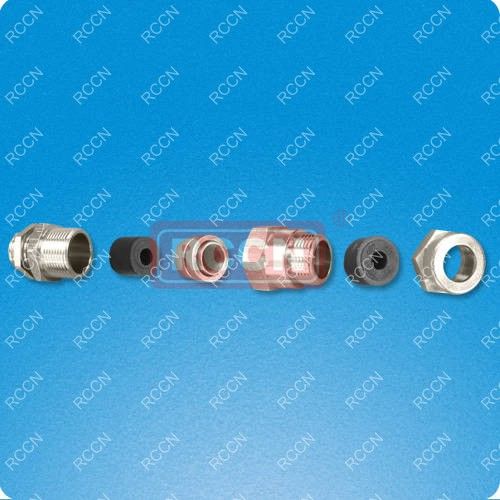

日成EX隔爆铠装型金属电缆防水接头

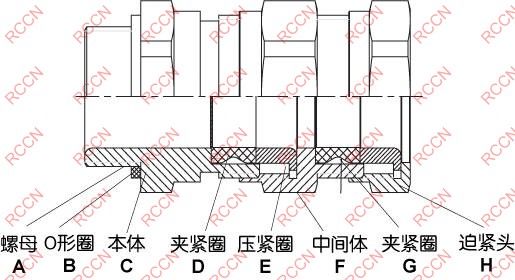

螺牙规格:公制螺牙(Metric),英制螺牙G。
产品材质:均采用黄铜镀镍制成,密封圈采用耐油丁腈橡胶(NBR)制成。
产品认证:欧洲CE,防爆EX认证
工作温度:静态-40°C至100°C
防护等级:在规定的卡口范围内,并使用防水O形圈及夹紧圈旋紧迫紧头,达到IP65。
产品特性:用于爆炸危险场所，固定非铠装电缆用。防爆设备，石油化工，煤矿或自动化工程均可适用。
特殊长度型号例:EX-M20×1.5/L=15
交货周期:本品无常规备货,交期2-3周。
目录页码:45

型号 Item No	螺纹长度 Thread Length L1	本体橡胶 Outer sealing	顶部橡胶 Outer sealing	屏蔽层 Tape braid	配套螺母上限板厚 +Nut Max platethick	接合长度 Joint Length H	板手 Spanne SW	包装 Std.Pkg Pcs
公制螺纹M
EX-M16×1.5-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24	50PCS
EX-M16×1.5-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-M20×1.5-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24
EX-M20×1.5-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-M20×1.5-21	16	7-14	15.5-21	≤0.50	≤10.5	58	30	25PCS
EX-M25×1.5-28	16	13-20	20-28	≤0.50	≤10.5	58	36
EX-M32×1.5-34	16	19-26	26-34	≤0.55	≤10.5	65	44
EX-M40×1.5-41	16	25-32	33-41	≤0.80	≤10.5	72	54	1PCS
EX-M50×1.5-46	16	32-38	39-46	≤0.80	≤10.5	73	64
EX-M50×1.5-53	16	36-44	45-53	≤0.80	≤10.5	73	64
EX-M63×1.5-60	19	42-50	52-60	≤0.80	≤13.5	76	81
EX-M63×1.5-66	19	50-56	58-66	≤0.80	≤13.5	76	81
EX-M75×1.5-66	19	54-62	64-72	≤1.00	≤13.5	82	96
EX-M75×1.5-78	19	60-68	71-78	≤1.00	≤13.5	82	96
EX-M80×2.0-84	19	62-72	77-84	≤1.00	≤13.5	110	110
EX-M80×2.0-90	19	70-80	80-90	≤1.00	≤13.5	110	110
EX-M85×2.0-90	19	70-80	80-90	≤1.00	≤13.5	110	110
EX-M90×2.0-96	19	74-84	88-96	≤1.00	≤13.5	110	110
EX-M90×2.0-100	19	80-90	90-100	≤1.00	≤13.5	110	110
EX-M100 2.0-100	19	80-90	90-100	≤1.00	≤13.5	110	110
德制螺纹 PG
EX-PG9-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24	100PCS
EX-PG9-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-PG13.5-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24
EX-PG13.5-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-PG13.5-21	16	7-14	15.5-21	≤0.50	≤10.5	58	30	25PCS
EX-PG21-28	16	13-20	20-28	≤0.50	≤10.5	58	36
EX-PG29-34	16	19-26	26-34	≤0.55	≤10.5	65	44
EX-PG36-41	16	25-32	33-41	≤0.80	≤10.5	72	54	1PCS
EX-PG42-46	16	32-38	39-46	≤0.80	≤10.5	73	64
EX-PG42-53	16	36-44	45-53	≤0.80	≤10.5	73	64
EX-PG48-60	19	42-50	52-60	≤0.80	≤13.5	76	81
EX-PG48-66	19	50-56	58-66	≤0.80	≤13.5	76	81
美制螺纹NPT
EX-NPT1/2-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24	50PCS
EX-NPT1/2-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-NPT1/2-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24
EX-NPT1/2-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-NPT1/2-21	16	7-14	15.5-21	≤0.50	≤10.5	58	30	25PCS
EX-NPT3/4-28	16	13-20	20-28	≤0.50	≤10.5	58	36
EX-NPT1-34	16	19-26	26-34	≤0.55	≤10.5	65	44
EX-NPT1-1/4-41	16	25-32	33-41	≤0.80	≤10.5	72	54	1PCS
EX-NPT1-1/2-46	16	32-38	39-46	≤0.80	≤10.5	73	64
EX-NPT1-1/2-53	16	36-44	45-53	≤0.80	≤10.5	73	64
EX-NPT2-60	19	42-50	52-60	≤0.80	≤13.5	76	81
EX-NPT2-66	19	50-56	58-66	≤0.80	≤13.5	76	81
EX-NPT2-1/2-66	19	54-62	64-72	≤1.00	≤13.5	82	96
EX-NPT2-1/2-78	19	60-68	71-78	≤1.00	≤13.5	82	96
EX-NPT3-96	19	74-84	88-96	≤1.00	≤13.5	110	110
EX-NPT3-100	19	80-90	90-100	≤1.00	≤13.5	110	110
EX-NPT3-1/2-100	19	80-90	90-100	≤1.00	≤13.5	110	110
英制螺纹G
EX-G1/2-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24	50PCS
EX-G1/2-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-G1/2-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24
EX-G1/2-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-G1/2-21	16	7-14	15.5-21	≤0.50	≤10.5	58	30	25PCS
EX-G3/4-28	16	13-20	20-28	≤0.50	≤10.5	58	36
EX-G1-34	16	19-26	26-34	≤0.55	≤10.5	65	44
EX-G1-1/4-41	16	25-32	33-41	≤0.80	≤10.5	72	54	1PCS
EX-G1-1/2-46	16	32-38	39-46	≤0.80	≤10.5	73	64
EX-G1-1/2-53	16	36-44	45-53	≤0.80	≤10.5	73	64
EX-G2-60	19	42-50	52-60	≤0.80	≤13.5	76	81
EX-G2-66	19	50-56	58-66	≤0.80	≤13.5	76	81
EX-G2-1/2-66	19	54-62	64-72	≤1.00	≤13.5	82	96
EX-G2-1/2-78	19	60-68	71-78	≤1.00	≤13.5	82	96
EX-G3-96	19	74-84	88-96	≤1.00	≤13.5	110	110
EX-G3-100	19	80-90	90-100	≤1.00	≤13.5	110	110
EX-G3-1/2-100	19	80-90	90-100	≤1.00	≤13.5	110	110
