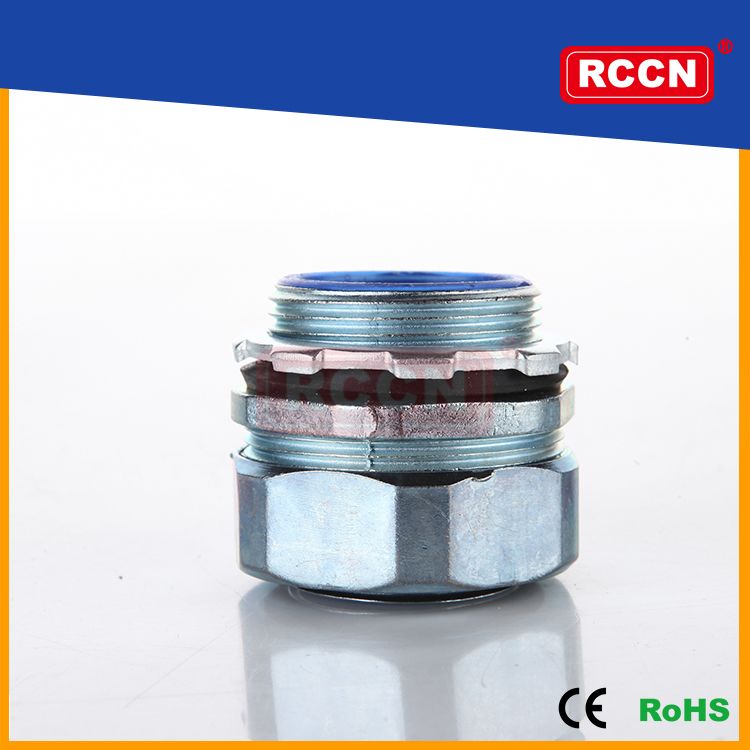

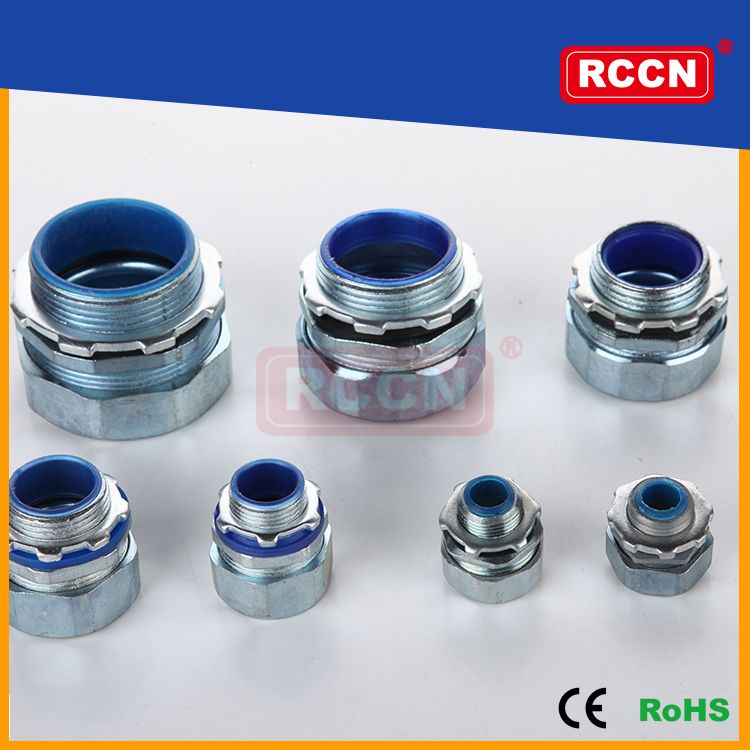

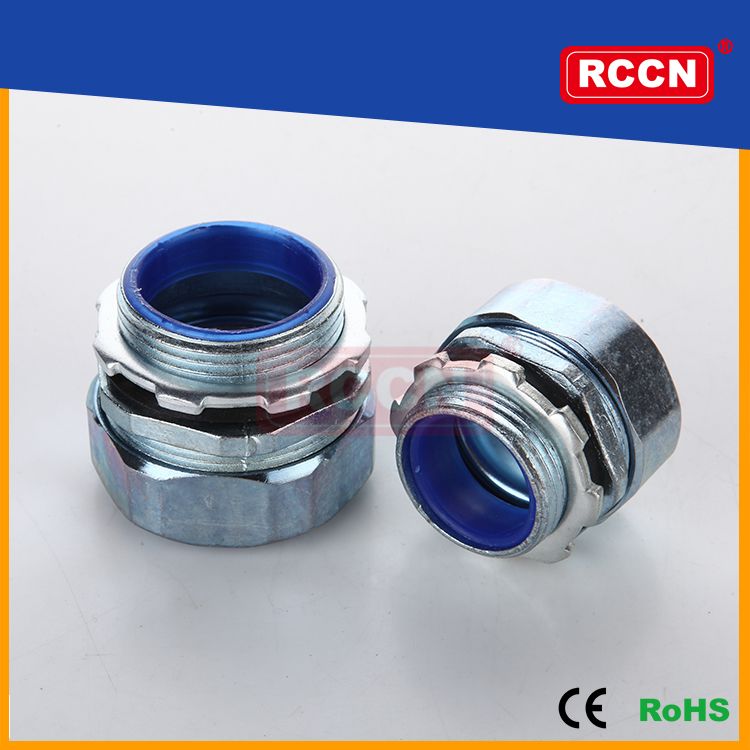

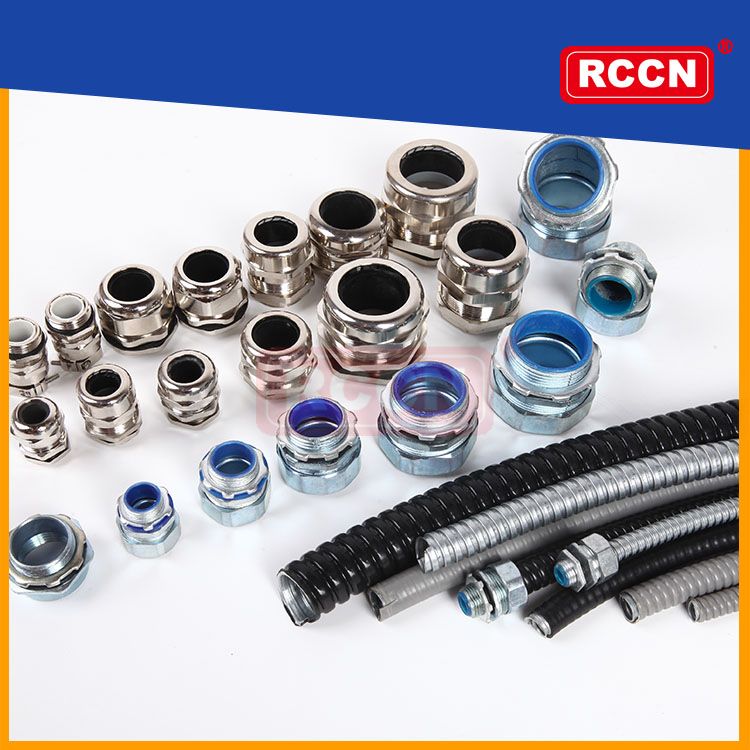

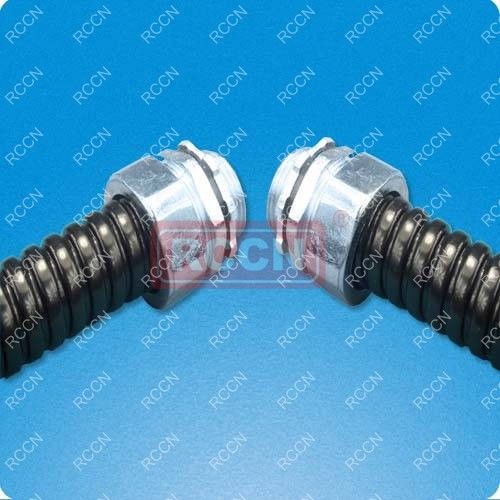

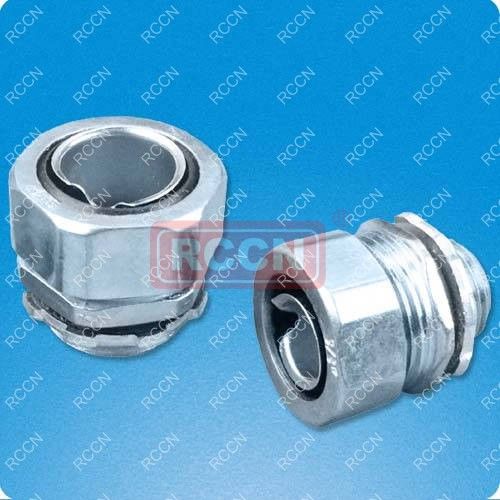

日成NBG型金属软管接头

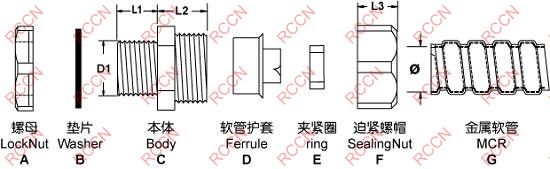

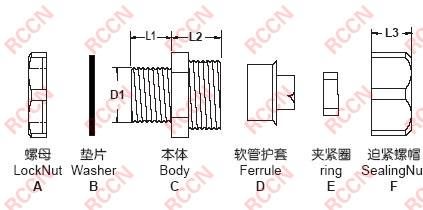

型号Item No. | 螺牙标准 Thread G/M/PG |
配套日成金属软管MCR | 螺纹外径 Thread O.D. D1 |
螺纹长度 Thread Length L1 |
接合长度 Joint Length L2+L3 |
包装 Packing pcs |
|||
锌合金 | 黄铜镀镍 | 对应型号 | 公制 | 英制 | |||||
管螺纹 NBG-G
|
|||||||||
NBG-01G | G1/4" | MCR-01 | 6 | 3/16" | 13.2 | 8 | 16 | 100 | |
NBG-02G | TNBG-02G | G1/4" | MCR-02 | 8 | 5/16" | 13.2 | 8 | 16 | 100 |
NBG-03G | TNBG-03G | G3/8" | MCR-03 | 10 | 1/4" | 16.5 | 8 | 17 | 100 |
NBG-04G | TNBG-04G | G3/8" | MCR-04 | 13 | 3/8" | 16.5 | 8 | 18 | 100 |
NBG-05G | TNBG-05G | G1/2" | MCR-05 | 16 | 1/2" | 21.3 | 11 | 23 | 100 |
NBG-06G | TNBG-06G | G3/4" | MCR-06 | 20 | 3/4" | 26.6 | 14 | 22 | 50 |
NBG-08G | TNBG-08G | G1" | MCR-08 | 25 | 1" | 33.4 | 15 | 28 | 50 |
NBG-10G | TNBG-10G | G1 1/4" | MCR-10 | 32 | 11/4" | 42.1 | 15 | 30 | 25 |
NBG-12G | TNBG-12G | G1 1/2" | MCR-12 | 38 | 11/2" | 47.8 | 16 | 32 | 25 |
NBG-16G | TNBG-16G | G2" | MCR-16 | 51 | 2 | 59.6 | 18 | 34 | 10 |
NBG-20G | G2 1/2" | MCR-20 | 64 | 2 1/2" | 75.1 | 22 | 38 | 10 | |
NBG-24G | G3" | MCR-24 | 80 | 3" | 87.8 | 22 | 46 | 5 | |
NBG-32G | G4" | MCR-32 | 100 | 4" | 113 | 24 | 50 | 5 | |
公制螺纹 NBG-M
|
|||||||||
NBG-01M | M14*1.5 | MCR-01 | 6 | 3/16" | M14*1.5 | 8 | 16 | 100 | |
NBG-02M | M14*1.5 | MCR-02 | 8 | 5/16" | M14*1.5 | 8 | 16 | 100 | |
NBG-03M | TNBG-03M | M16*1.5 | MCR-03 | 10 | 1/4 | M16*1.5 | 8 | 17 | 100 |
NBG-04M | TNBG-04M | M16*1.5 | MCR-04 | 13 | 3/8" | M16*1.5 | 8 | 18 | 100 |
NBG-05M | TNBG-05M | M20*1.5 | MCR-05 | 16 | 1/2" | M20*1.5 | 11 | 23 | 100 |
NBG-06M | TNBG-06M | M25*1.5 | MCR-06 | 20 | 3/4" | M25*1.5 | 14 | 22 | 50 |
NBG-08M | TNBG-08M | M32*1.5 | MCR-08 | 25 | 1" | M32*1.5 | 15 | 28 | 50 |
NBG-10M | TNBG-10M | M40*1.5 | MCR-10 | 32 | 11/4" | M40*1.5 | 15 | 30 | 25 |
NBG-12M | TNBG-12M | M50*1.5 | MCR-12 | 38 | 1 1/2 | M50*1.5 | 16 | 32 | 25 |
NBG-16M | TNBG-16M | M63*1.5 | MCR-16 | 51 | 2" | M63*1.5 | 18 | 34 | 10 |
NBG-20M | M76*2 | MCR-20 | 64 | 2 1/2" | M76*2 | 22 | 38 | 10 | |
NBG-24M | M88*2 | MCR-24 | 80 | 3" | M88*2 | 22 | 46 | 5 | |
NBG-32M | M114*2 | MCR-32 | 100 | 4" | M114*2 | 24 | 50 | 5 | |
德制螺纹 NBG-PG
|
|||||||||
NBG-03P | TNBG-03P | PG9 | MCR-03 | 10 | 1/4" | 15.2 | 8 | 16 | 100 |
NBG-04P | TNBG-04P | PG11 | MCR-04 | 13 | 3/8" | 18.6 | 9 | 17 | 100 |
NBG-05P | TNBG-05P | PG13.5 | MCR-05 | 16 | 1/2" | 20.4 | 11 | 23 | 100 |
NBG-06P | TNBG-06P | PG21 | MCR-06 | 20 | 3/4" | 28.3 | 14 | 23 | 50 |
NBG-08P | TNBG-08P | PG29 | MCR-08 | 25 | 1" | 37.0 | 15 | 28 | 50 |
NBG-10P | TNBG-10P | PG29 | MCR-10 | 32 | 1 1/4" | 37.0 | 15 | 30 | 25 |
NBG-12P | TNBG-12P | PG36 | MCR-12 | 38 | 11/2" | 47.0 | 16 | 32 | 25 |
NBG-16P | TNBG-16P | PG48 | MCR-16 | 51 | 2" | 59.3 | 18 | 34 | 10 |
