日成：产品目录 >>电缆接头金属接头 >>日成ST-NPT/G 美制英制电缆防水接头

日成ST-NPT/G 美制英制电缆防水接头

螺牙规格:美制螺牙(NPT),英制螺牙（G）

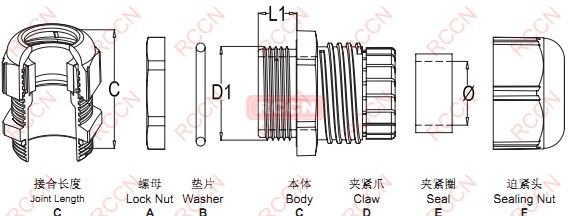

产品材质:A.C.D.F部位均采用环保尼龙66原料制成.B,E耐老化硅橡胶制成
产品认证:UL,CE,ROHS ,REACH。防火等级:UL94V-2。
防护等级:使用防水垫片及夹紧圈旋紧迫紧头,达到IP68(EN60529)。

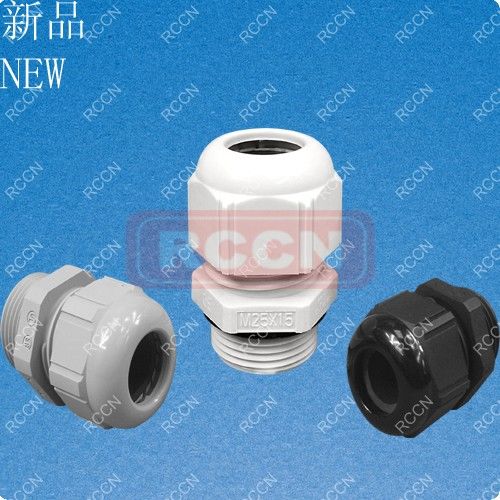

颜色种类:灰白色RAL7035、黑色RAL9005、浅灰色RAL7001。
使用方法:先将本体穿于机板,螺母扭紧固定,线缆穿过迫紧头,扭紧迫紧头固定。
工作温度:静态-50°C至150°C。

目录页码：A4页

型号 Item No	螺牙规格 Thread	电缆范围 Cable Range	螺纹外径 Thread O.D. D1	螺纹长度 Thread Length L1	接合长度 Thread Length	板手 Spanner size A&F	包装 Std.Pkg Pcs
灰白色 NPT短螺纹							100PCS
ST-NPT1/4W	NPT1/4	3.5-7	13.6	8	37	15
ST-NPT3/8W	NPT3/8	4.5-10	17.055	8	41	19
ST-NPT1/2W	NPT1/2	7-13	21.223	9	43	25
ST-NPT3/4W	NPT3/4	9-17	26.568	10	45	30
ST-NPT1W	NPT1	11-21	33.227	10	51	36	20PCS
ST-NPT1-1/4W	NPT1-1/4	19-28	41.984	10	56	46
ST-NPT1-1/2W	NPT1-1/2	27-35	48.053	12	68	55
ST-NPT2W	NPT2	34-45	60.091	12	77	66
灰白色 NPT长螺纹							100PCS
ST-NPT1/4LW	NPT1/4	3.5-7	13.616	15	44	15
ST-NPT3/8LW	NPT3/8	4.5-10	17.055	15	48	19
ST-NPT1/2LW	NPT1/2	7-13	21.223	15	49	25
ST-NPT3/4LW	NPT3/4	9-17	26.568	15	50	30
ST-NPT1LW	NPT1	11-21	33.227	15	56	36	20PCS
ST-NPT1-1/4LW	NPT1-1/4	19-28	41.984	15	61	46
ST-NPT1-1/2LW	NPT1-1/2	27-35	48.053	18	74	55
ST-NPT2LW	NPT2	34-45	60.091	18	83	66
灰白色 NPT短螺纹
ST-G1/4W	G1/4	3.5-7	13.157	8	37	15	100PCS
ST-G3/8W	G3/8	4.5-10	16.662	8	41	19
ST-G1/2W	G1/2	7-13	20.955	9	43	25
ST-G3/4W	G3/4	9-17	26.441	10	45	30
ST-G1W	G1 1	11-21	33.249	10	51	36	20PCS
ST-G1-1/4W	G1-1/4	19-28	41.91	10	56	46
ST-G1-1/2W	G1-1/2	27-35	47.803	12	68	55
ST-G2W	G2 3	34-45	59.614	12	77	66
灰白色 N P T 长螺纹
ST-G1/4LW	G1/4	3.5-7	13.157	15	44	15	100PCS
ST-G3/8LW	G3/8	4.5-10	16.662	15	48	19
ST-G1/2LW	G1/2	7-13	20.955	15	49	25
ST-G3/4LW	G3/4	9-17	26.441	15	50	30
ST-G1LW	G1 1	11-21	33.249	15	56	36	20PCS
ST-G1-1/4LW	G1-1/4	19-28	41.910	15	61	46
ST-G1-1/2LW	G1-1/2	27-35	47.803	18	74	55
ST-G2LW	G2 3	34-45	59.614	18	83	66
黑色 N P T 短螺纹
ST-NPT1/4B	NPT1/4	3.5-7	13.6	8	37	15	100PCS
ST-NPT3/8B	NPT3/8	4.5-10	17.055	8	41	19
ST-NPT1/2B	NPT1/2	7-13	21.223	9	43	25
ST-NPT3/4B	NPT3/4	9-17	26.568	10	45	30
ST-NPT1B	NPT1	11-21	33.227	10	51	36	20PCS
ST-NPT1-1/4B	NPT1-1/4	19-28	41.984	10	56	46
ST-NPT1-1/2B	NPT1-1/2	27-35	48.053	12	68	55
ST-NPT2B	NPT2	34-45	60.091	12	77	66
黑色 N P T 长螺纹
ST-NPT1/4LB	NPT1/4	3.5-7	13.616	15	44	15	100PCS
ST-NPT3/8LB	NPT3/8	4.5-10	17.055	15	48	19
ST-NPT1/2LB	NPT1/2	7-13	21.223	15	49	25
ST-NPT3/4LB	NPT3/4	9-17	26.568	15	50	30
ST-NPT1LB	NPT1	11-21	33.227	15	56	36	20PCS
ST-NPT1-1/4LB	NPT1-1/4	19-28	41.984	15	61	46
ST-NPT1-1/2LB	NPT1-1/2	27-35	48.053	18	74	55
ST-NPT2LB	NPT2	34-45	60.091	18	83	66
黑色G 短螺纹
ST-G1/4B	G1/4	3.5-7	13.616	15	37	15	100PCS
ST-G3/8B	G3/8	4.5-10	17.055	15	41	19
ST-G1/2B	G1/2	7-13	21.223	15	43	25
ST-G3/4B	G3/4	9-17	26.568	15	45	30
ST-G1B	G1 1	11-21	33.227	15	51	36	20PCS
ST-G1-1/4B	G1-1/4	19-28	41.984	15	56	46
ST-G1-1/2B	G1-1/2	27-35	48.053	18	68	55
ST-G2B	G2	34-45	60.091	18	77	66
黑色 G长螺纹
ST-G1/4LB	G1/4	3.5-7	13.157	15	44	15	100PCS
ST-G3/8LB	G3/8	4.5-10	16.662	15	48	19
ST-G1/2LB	G1/2	7-13	20.955	15	49	25
ST-G3/4LB	G3/4	9-17	26.441	15	50	30
ST-G1LB	G1 1	11-21	33.249	15	56	36	20PCS
ST-G1-1/4LB	G1-1/4	19-28	41.910	15	61	46
ST-G1-1/2LB	G1-1/2	27-35	47.803	18	74	55
ST-G2LB	G2	34-45	59.614	18	83	66
浅灰色 N P T 短螺纹
ST-NPT1/4G	NPT1/4	3.5-7	13.6	8	37	15	100PCS
ST-NPT3/8G	NPT3/8	4.5-10	17.055	8	41	19
ST-NPT1/2G	NPT1/2	7-13	21.223	9	43	25
ST-NPT3/4G	NPT3/4	9-17	26.568	10	45	30
ST-NPT1G	NPT1	11-21	33.227	10	51	36	20PCS
ST-NPT1-1/4G	NPT1-1/4	19-28	41.984	10	56	46
ST-NPT1-1/2G	NPT1-1/2	27-35	48.053	12	68	55
ST-NPT2G	NPT2	34-45	60.091	12	77	66
浅灰色 N P T 长螺纹
ST-NPT1/4LG	NPT1/4	3.5-7	13.616	15	44	15	100PCS
ST-NPT3/8LG	NPT3/8	4.5-10	17.055	15	48	19
ST-NPT1/2LG	NPT1/2	7-13	21.223	15	49	25
ST-NPT3/4LG	NPT3/4	9-17	26.568	15	50	30
ST-NPT1LG	NPT1	11-21	33.227	15	56	36	20PCS
ST-NPT1-1/4LG	NPT1-1/4	19-28	41.984	15	61	46
ST-NPT1-1/2LG	NPT1-1/2	27-35	48.053	18	74	55
ST-NPT2LG	NPT2	34-45	60.091	18	83	66
浅灰色 G短螺纹
ST-G1/4G	G1/4	3.5-7	13.616	15	37	15	100PCS
ST-G3/8G	G3/8	4.5-10	17.055	15	41	19
ST-G1/2G	G1/2	7-13	21.223	15	43	25
ST-G3/4G	G3/4	9-17	26.568	15	45	30
ST-G1G	G1 1	11-21	33.227	15	51	36	20PCS
ST-G1-1/4G	G1-1/4	19-28	41.984	15	56	46
ST-G1-1/2G	G1-1/2	27-35	48.053	18	68	55
ST-G2G	G2	34-45	60.091	18	77	66
浅灰色G长螺纹
ST-G1/4LG	G1/4	3.5-7	13.157	15	44	15	100PCS
ST-G3/8LG	G3/8	4.5-10	16.662	15	48	19
ST-G1/2LG	G1/2	7-13	20.955	15	49	25
ST-G3/4LG	G3/4	9-17	26.441	15	50	30
ST-G1LG	G1 1	11-21	33.249	15	56	36	20PCS
ST-G1-1/4LG	G1-1/4	19-28	41.910	15	61	46
ST-G1-1/2LG	G1-1/2	27-35	47.803	18	74	55
ST-G2LG	G2	34-45	59.614	18	83	66
