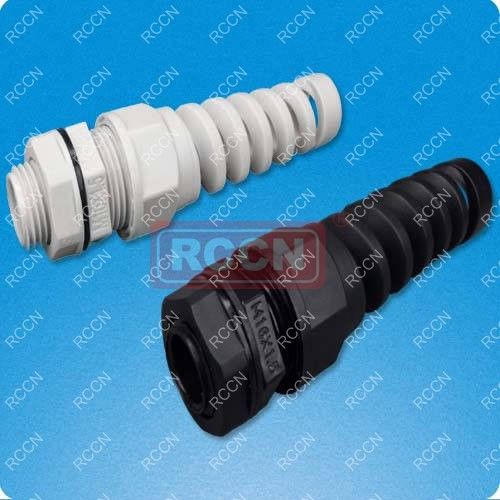

日成耐扭电缆接头
    |
|
螺牙规格:公制螺牙(Metric/EN50262), 德制螺牙(DIN PG) ,美制螺牙(NPT)。 |
|

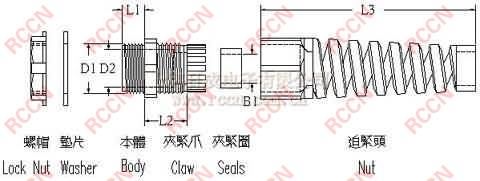

型号
Item No. |
螺牙规格 Thread |
适用电 缆外径 CableRange ￠ |
螺纹外径 Thread O.D. D1 |
机板开孔 Panel Mounting Hole |
螺纹长度 Thread Length L1 |
板手 Spanner size A&F |
包装 Std.Pkg pcs |
|
|
灰白色
White |
黑色
Black |
|||||||
|
短螺纹 公制螺牙 METRIC
|
||||||||
|
AG-12SRW
|
AG-12SRB
|
M12×1.5
|
3-6.5
|
12
|
12-12.3
|
8
|
18/17
|
50PCS
|
|
AG-16SRW
|
AG-16SRB
|
M16×1.5
|
4-8
|
16
|
16-16.3
|
8
|
22/20
|
|
|
AG-18SRW
|
AG-18SRB
|
M18×1.5
|
5-10
|
18
|
18-18.3
|
8
|
24/22
|
|
|
AG-20SRW
|
AG-20SRB
|
M20×1.5
|
6-12
|
20
|
20-20.3
|
9
|
27/24
|
|
|
AG-22SRW
|
AG-22SRB
|
M22×1.5
|
10-14
|
22
|
22-22.3
|
10
|
30/27
|
|
|
AG-25SRW
|
AG-25SRB
|
M25×1.5
|
13-18
|
25
|
25-25.4
|
10
|
35/34
|
|
|
AG-27SRW
|
AG-27SRB
|
M27×1.5
|
13-18
|
27
|
27-27.4
|
10
|
35/34
|
|
|
短螺纹 德制螺牙 PG DIN
|
||||||||
|
PG-7SRW
|
PG-7SRB
|
PG7
|
3-6.5
|
12.5
|
12.5
|
8
|
18/17
|
50PCS
|
|
PG-9SRW
|
PG-9SRB
|
PG9
|
4-8
|
15.2
|
15.2
|
8
|
22/20
|
|
|
PG-11SRW
|
PG-11SRB
|
PG11
|
5-10
|
18.6
|
18.6
|
8
|
24/22
|
|
|
PG-13.5SRW
|
PG-13.5SRB
|
PG13.5
|
6-12
|
20.4
|
20.4
|
9
|
27/24
|
|
|
PG-16SRW
|
PG-16SRB
|
PG16
|
10-14
|
22.5
|
22.5
|
10
|
30/27
|
|
|
PG-21SRW
|
PG-21SRB
|
PG 21
|
13-18
|
28.3
|
28.3
|
10
|
36/34
|
|
|
长螺纹 公制螺牙 METRIC
|
||||||||
|
AG-12SRLW
|
AG-12SRLB
|
M12×1.5
|
3-6.5
|
12
|
12-12.3
|
15
|
18/17
|
50PCS
|
|
AG-16SRLW
|
AG-16SRLB
|
M16×1.5
|
4-8
|
16
|
16-16.3
|
15
|
22/20
|
|
|
AG-18SRLW
|
AG-18SRLB
|
M18×1.5
|
5-10
|
18
|
18-18.3
|
15
|
24/22
|
|
|
AG-20SRLW
|
AG-20SRLB
|
M20×1.5
|
6-12
|
20
|
20-20.3
|
15
|
27/24
|
|
|
AG-22SRLW
|
AG-22SRLB
|
M22×1.5
|
10-14
|
22
|
22-22.3
|
15
|
30/27
|
|
|
AG-25SRLW
|
AG-25SRLB
|
M25×1.5
|
13-18
|
25
|
25-25.4
|
15
|
35/34
|
|
|
长螺纹 德制螺牙 PG DIN
|
||||||||
|
PG-7SRLW
|
PG-7SRLB
|
PG7
|
3-6.5
|
12.5
|
12.5
|
15
|
18/17
|
50PCS
|
|
PG-9SRLW
|
PG-9SRLB
|
PG9
|
4-8
|
15.2
|
15.2
|
15
|
22/20
|
|
|
PG-11SRLW
|
PG-11SRLB
|
PG11
|
5-10
|
18.6
|
18.6
|
15
|
24/22
|
|
|
PG-13.5SRLW
|
PG-13.5SRLB
|
PG13.5
|
6-12
|
20.4
|
20.4
|
15
|
27/24
|
|
|
PG-16SRLW
|
PG-16SRLB
|
PG16
|
10-14
|
22.5
|
22.5
|
15
|
30/27
|
|
|
PG-21SRLW
|
PG-21SRLB
|
PG 21
|
13-18
|
28.3
|
28.3
|
15
|
36/34
|
|
|
长螺纹 美制螺牙 NPT
|
||||||||
|
NPT 3/8SRLW
|
NPT 3/8SRLB
|
NPT 3/8"
|
4-8
|
16.5
|
16.5
|
15
|
22/20
|
50PCS
|
|
NPT 1/2SRLW
|
NPT 1/2SRLB
|
NPT 1/2"
|
6-12
|
21.3
|
21.3
|
13
|
27/24
|
|
|
NPT 3/4SRLW
|
NPT 3/4SRLB
|
NPT 3/4"
|
13-18
|
26.6
|
26.6
|
15
|
34/34
|
|
