Product Information:

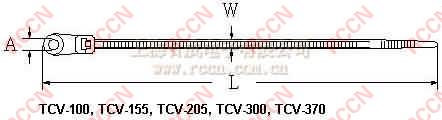

RCCN Mounting cable Tie
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material: UL approved NYLON 66,94V-2 Color: Natural white (Available in black) The cable tie can be secured to panel with a single bolt |
| Item No. | Length (mm) |
Width (mm) |
ÂÝË¿¿×¾¶ | Max. Bundle Dia. (mm) |
Min.Tensile Strength | Packing | |
| Lbs | Kgs | ||||||
| TCV-100M | 100 | 2.5 | 3 | 25 | 18 | 8 | 100pcs
|
| TCV-155I | 155 | 3.7 | 4.8 | 40 | 40 | 18 | |
| TCV-205ST | 205 | 4.2 | 4.6 | 60 | 50 | 22 | |
| TCV-300ST | 300 | 4.8 | 4.8 | 85 | 50 | 22 | |
| TCV-300HD | 300 | 7.8 | 6 | 80 | 120 | 55 | |
| TCV-370HD | 370 | 4.8 | 4.87 | 102 | 50 | 22 | |
| TCV-400HD | 398 | 7.9 | 6.12 | 122 | 120 | 55 | |
