Product Information:
009 RCCN NYLON CABLE GLAND (WITH
NPT)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
   |
| . Thread :NPT./Can be screwed directly onto Metric threaded
mounting hole. . Materials : Nylon PA 66 (Flammability UL 94V-2) . Colours : Standard in black and gray. . Working Temp. : -40 oC to 100 oC. . Installation : Time saving, cable can be easily once inserted into through the gland without dismantling the parts. . Claw : The claws and seals of excellent design can hold cable firmly and have a wider cable range. . Features : Resistant to salt water, weak acid, alcohol, oil, grease and common solvency. |
Item No. |
Thread |
CableRange ￠ |

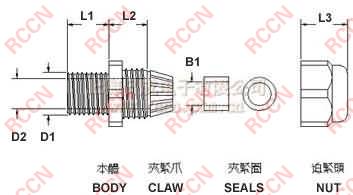

Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Joint Length L2+L3 |
Spanner size A&F |
Std.Pkg. pcs |
|
White |
Black |
||||||||
| NPT 1/4W | NPT 1/4B | NPT 1/4" | 3-6.5 | 13.2 | 13.2-13. | 8 | 22 | 18/16 | 100PCS |
| NPT 3/8W | NPT 3/8B | NPT 3/8" | 4-8 | 16.5 | 16.5-17.1 | 15 | 26 | 22/19 | |
| NPT 1/2W | NPT 1/2B | NPT 1/2" | 6-12 | 21.3 | 21.0-21.3 | 13 | 30 | 27/24 | |
| NPT 3/4W | NPT 3/4B | NPT 3/4" | 13-18 | 26.6 | 26.5-26.6 | 15 | 37 | 33/33 | |
| NPT 11/4W | NPT 11/4B | NPT 11/4" | 22-32 | 42.1 | 41.9-42.1 | 16 | 48 | 54/50 | |
| NPT 11/2W | NPT 11/2B | NPT 11/2" | 32-48 | 47.8 | 47.8-48.0 | 20 | 49 | 63/61 | |
| NPT 2W | NPT 2B | NPT 2" | 37-44 | 59.6 | 59.6-60.1 | 20 | 50 | 75/65 | |
