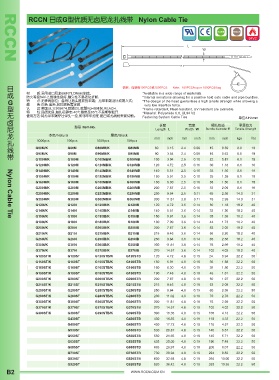

Page 116 - 上海日成品牌 RCCN 线槽 电缆接头 尼龙扎带 尼龙软管 接线端子
P. 116
*Available in a wide range of materials.
*Internal serrations allowing for a positive hold onto cable and pipe bundles.
*The design of the head guarantees a high tensile strength while allowing a
very low insertion force.
*Flame-retardant, Heat-resistant, UV resistant are available.
*Material: Polyamide 6.6, UL94 V2
Fastening System Cable Tiesb
G80M/K G80M G80MB/K 80 3.15 G80MB 0.09 15 0.59 8.0 18
2.4
G90M/K G90M G90MB/K G90MB 90 3.54 2.4 0.09 16 0.63 8.0 18
G100M/K G100M G100MB/K G100MB 100 3.94 2.5 0.10 22 0.87 8.1 18
G120M/K G120M G120MB/K G120MB 120 4.72 2.5 0.10 30 1.18 8.1 18
G140M/K G140M G140MB/K G140MB 140 5.51 2.5 0.10 33 1.30 8.1 18
G150M/K G150M G150MB/K G150MB 150 5.91 2.5 0.10 35 1.38 8.1 18
G160M/K G160M G160MB/K G160MB 160 6.30 2.5 0.10 38 1.50 8.1 18
G200M/K G200M G200MB/K G200MB 200 7.87 2.5 0.10 53 2.09 8.1 18
G250M/K G250M G250MB/K G250MB 250 9.84 2.8 0.11 65 2.56 14.0 31
G300M/K G300M G300MB/K G300MB 300 11.81 2.8 0.11 76 2.99 14.0 31
G120I/K G120I G120IB/K G120IB 120 4.72 3.6 0.14 30 1.18 18.2 40
G140I/K G140I G140IB/K G140IB 140 5.51 3.6 0.14 33 1.30 18.2 40
G150I/K G150I G150IB/K G150IB 150 5.91 3.6 0.14 35 1.38 18.2 40
Nylon Cable Tie
G180I/K G180I G180IB/K G180IB 180 7.09 3.6 0.14 44 1.73 18.2 40
G200I/K G200I G200IB/K G200IB 200 7.87 3.6 0.14 52 2.05 18.2 40
G215I/K G215I G215IB/K G215IB 215 8.46 3.6 0.14 56 2.20 18.2 40
G250I/K G250I G250IB/K G250IB 250 9.84 3.6 0.14 65 2.56 18.2 40
G300I/K G300I G300IB/K G300IB 300 11.81 3.6 0.14 76 2.99 18.2 40
G370I/K G370I G370IB/K G370IB 370 14.57 3.6 0.14 102 4.02 18.2 40
G120ST/K G120ST G120STB/K G120STB 120 4.72 4.8 0.19 24. 0.94 22.2 50
G150ST/K G150ST G150STB/K G150STB 150 5.91 4.8 0.19 35 1.38 22.2 50
G160ST/K G160ST G160STB/K G160STB 160 6.30 4.8 0.19 38 1.50 22.2 50
G190ST/K G190ST G190STB/K G190STB 190 7.48 4.8 0.19 46 1.81 22.2 50
G200ST/K G200ST G200STB/K G200STB 200 7.87 4.8 0.19 50 1.97 22.2 50
G215ST/K G215ST G215STB/K G215STB 215 8.46 4.8 0.19 53 2.09 22.2 50
G250ST/K G250ST G250STB/K G250STB 250 9.84 4.8 0.19 60 2.36 22.2 50
G280ST/K G280ST G280STB/K G280STB 280 11.02 4.8 0.19 70 2.76 22.2 50
G300ST/K G300ST G300STB/K G300STB 300 11.81 4.8 0.19 76 2.99 22.2 50
G370ST/K G370ST G370STB/K G370STB 370 14.57 4.8 0.19 102 4.02 22.2 50
G390ST/K G390ST G390STB/K G390STB 390 15.35 4.8 0.19 105 4.13 22.2 50
G430ST G430STB 430 16.93 4.8 0.19 110 4.33 22.2 50
G450ST G450STB 450 17.72 4.8 0.19 116 4.57 22.2 50
G530ST G530STB 530 20.87 4.8 0.19 140 5.51 22.2 50
G550ST G550STB 550 21.65 4.8 0.19 145 5.71 22.2 50
G635ST G635STB 635 25.00 4.8 0.19 190 7.48 22.2 50
G685ST G685STB 685 26.97 4.8 0.19 205 8.07 22.2 50
G730ST G730STB 730 28.94 4.8 0.19 224 8.82 22.2 50
G830ST G830STB 830 32.68 4.8 0.19 254 10.00 22.2 50
G920ST G920STB 920 36.42 4.8 0.19 263 10.35 22.2 50
