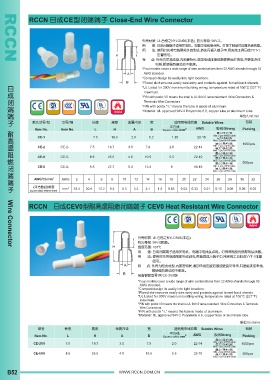

P. 170
CE-1 7.5 18.0 2.6 6.2 1.25 22-18
CE-2 CE-2 7.5 19.7 3.0 7.9 2.0 22-14
CE-5 CE-5 8.5 25.5 4.0 10.5 5.5 22-10
CE-8 CE-8 9.5 27.7 5.3 12.4 8 16-10
AWG 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32
mm 2 33.4 20.8 13.2 8.4 5.3 3.3 2.1 1.3 0.83 0.52 0.33 0.21 0.13 0.08 0.05 0.03
*Four models cover a wide range of wire combinations from 22 AWG strands through 10
AWG stranded.
*Compact design its easily into tight locations.
*Flared skirt ensures easily wire entry and protects against turned-back strands.
*UL Listed for 300V maximum building wiring; temperature rated at 105°C (221°F)
maximum.
*P/N with postix V0 means the shell is UL 94V-0 lame-retardant. Wire Connectors & Terminals
Wire Connectors.
*P/N with postix "-L" means the tube is made of aluminum.
*Material: UL approved 94V-2 Polyamide 6.6, copper tube or aluminum tube.
CE-2V0 7.5 19.7 3.0 7.9 2.0 22-14
CE-5V0 8.5 25.5 4.0 10.5 5.5 22-10
CE-2 CE-2 7.5 19.7 3.0 7.9 2.0 22-14
CE-5 CE-5 8.5 25.5 4.0 10.5 5.5 22-10
CE-8 CE-8 9.5 27.7 5.3 12.4 8 16-10
AWG 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32
mm 2 33.4 20.8 13.2 8.4 5.3 3.3 2.1 1.3 0.83 0.52 0.33 0.21 0.13 0.08 0.05 0.03
*Four models cover a wide range of wire combinations from 22 AWG strands through 10
AWG stranded.
*Compact design its easily into tight locations.
*Flared skirt ensures easily wire entry and protects against turned-back strands.
*UL Listed for 300V maximum building wiring; temperature rated at 105°C (221°F)
maximum.
*P/N with postix V0 means the shell is UL 94V-0 lame-retardant. Wire Connectors & Terminals
Wire Connectors.
*P/N with postix "-L" means the tube is made of aluminum.
*Material: UL approved 94V-2 Polyamide 6.6, copper tube or aluminum tube.
CE-2V0 7.5 19.7 3.0 7.9 2.0 22-14
CE-5V0 8.5 25.5 4.0 10.5 5.5 22-10
