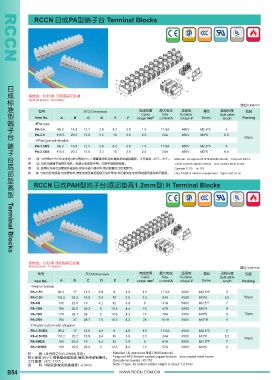

P. 172
ָ̼Flat type
PA-1.5 96.2 16.3 12.7 2.8 8.2 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5 116.5 20.2 15.8 3.2 10 3.6 2.5 24A 450V M3*6 6.5
ָڸோ̼͓lat type with fleixble
PA-1.5DS 96.2 16.3 12.7 2.8 8.2 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5DS 116.5 20.2 15.8 3.2 10 3.6 2.5 24A 450V M3*6 6.5
Material: UL approved NYLON66(natural)đ fireproof 94V-2đ
nickel coated copper bottomđ zinc coated steel screw
Operate T:-30¥ to 110¥b
Use: Used in electric equipementa lights and so on
Terminal Blocks
ָׇ̼҆ۚHigher bottom
PA-1.5H 96.2 17 14.5 2.8 8 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5H 116.5 20.2 16.8 3.4 10 3.6 2.5 24A 450V M3*6 6.5
PA-6H 141 23.8 19 4.2 12 3.9 6 41A 500V M3.5*7 7
PA-10H 158 25.6 25.2 5 13.5 4.4 10 57A 500V M4*9 9
PA-16H 170 28.1 23 6 14.5 4.2 16 76A 500V M4*9 9
PA-25H 194 37 28.7 7.5 16.5 4.2 25 101A 500V M4*11 11
ָׇ҆ۚڸோ̼Higher bottom with shrapnel
PA-1.5HDS 96.2 17 14.5 2.8 8 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5HDS 116.2 20.2 16.8 3.4 10 3.6 2.5 24A 450V M3*6 6.5
PA-6HDS 141 23.8 19 4.2 12 3.9 6 41A 500V M3.5*7 7
PA-10HDS 158 25.6 25.2 5 13.5 4.4 10 57A 500V M4*9 9
Material: UL approved NYLON66(natural)đ
Fireproof 94V-2đnickel coated copper bottomđzinc coated steel screw
Operate temperate:-30¥-110¥b
Note: H type, its bottom added height is about 1-2.5mm
PA-1.5 96.2 16.3 12.7 2.8 8.2 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5 116.5 20.2 15.8 3.2 10 3.6 2.5 24A 450V M3*6 6.5
ָڸோ̼͓lat type with fleixble
PA-1.5DS 96.2 16.3 12.7 2.8 8.2 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5DS 116.5 20.2 15.8 3.2 10 3.6 2.5 24A 450V M3*6 6.5
Material: UL approved NYLON66(natural)đ fireproof 94V-2đ
nickel coated copper bottomđ zinc coated steel screw
Operate T:-30¥ to 110¥b
Use: Used in electric equipementa lights and so on
Terminal Blocks
ָׇ̼҆ۚHigher bottom
PA-1.5H 96.2 17 14.5 2.8 8 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5H 116.5 20.2 16.8 3.4 10 3.6 2.5 24A 450V M3*6 6.5
PA-6H 141 23.8 19 4.2 12 3.9 6 41A 500V M3.5*7 7
PA-10H 158 25.6 25.2 5 13.5 4.4 10 57A 500V M4*9 9
PA-16H 170 28.1 23 6 14.5 4.2 16 76A 500V M4*9 9
PA-25H 194 37 28.7 7.5 16.5 4.2 25 101A 500V M4*11 11
ָׇ҆ۚڸோ̼Higher bottom with shrapnel
PA-1.5HDS 96.2 17 14.5 2.8 8 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5HDS 116.2 20.2 16.8 3.4 10 3.6 2.5 24A 450V M3*6 6.5
PA-6HDS 141 23.8 19 4.2 12 3.9 6 41A 500V M3.5*7 7
PA-10HDS 158 25.6 25.2 5 13.5 4.4 10 57A 500V M4*9 9
Material: UL approved NYLON66(natural)đ
Fireproof 94V-2đnickel coated copper bottomđzinc coated steel screw
Operate temperate:-30¥-110¥b
Note: H type, its bottom added height is about 1-2.5mm
