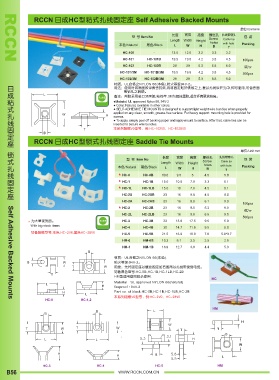

Page 174 - 上海日成品牌 RCCN 线槽 电缆接头 尼龙扎带 尼龙软管 接线端子

HC-100 - 12.5 12.5 3.2 3.2 3.2
HC-101 HC-101B 19.5 19.5 4.2 3.8 4.5
HC-102 HC-102B 29 29 5.3 6.8 6.0
HC-101/3M HC-101B/3M 19.5 19.5 4.2 3.8 4.5
HC-102/3M HC-102B/3M 29 29 5.3 6.8 6.0

●Material: UL approved Nylon 66, 94V-2
● Color: Natural, available in other colors.
● SELF-ADHESIVE TIE MOUNTS is designed to support light weight wire bundles when properly
applied on any clean, smooth, grease-free surface. For heavy support. mounting hole is provided for
screws.
● To apply, simply peel off backing paper and apply mount to surface. After that, cable ties can be
inserted to secure wire bundles.

HC-0 HC-0B 19.6 9.5 5 4.5 5.8
HC-1 HC-1B 15.0 10.0 7.0 3.3 5.1
HC-1L HC-1LB 15.0 10 7.0 4.5 5.1
HC-2S HC-2SB 23 16 9.8 4.5 9.0
HC-2A HC-2AB 23 16 9.8 6.1 9.0
HC-2 HC-2B 23 16 9.8 5.3 9.0
HC-2L HC-2LB 23 16 9.8 6.5 9.0
HC-3 HC-3B 23 13.8 17.5 9.5 5.3
HC-4 HC-4B 30 14.7 11.6 9.5 5.0
HC-5 HC-5B 21.5 16.0 10.0 7.8 5.8*9.7
HM-0 HM-0B 10.2 8.1 2.5 3.5 2.8
HM-1 HM-1B 18.9 12.7 3.0 4.4 5.0

Materialğ UL approved NYLON 66(natural)đ
fireproof : 94V-2
Part no. of black:HC-0B,HC-1B,HC-1LB,HC-2B
