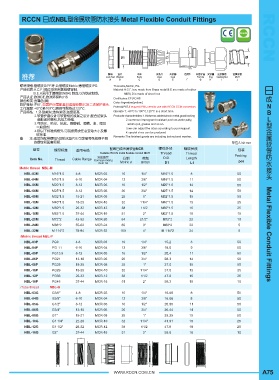

P. 95
Thread:G,Metric, PG
Material:A.C.F.I are made from Brass metal.B.E are made of rubber
NBR).D is made of sheet iron
Certificates:CE,ROHS
Color:Argentine(yellow)
Protect:IP67,if request IP68, need to use with RCCN SCM connectors
Operate T.:-40°C to 100°C,120°C in a short time.
Products characteristics: 1.thickness added zincic metal,good looking
2.conmmon impregnant resistant,such as water,salty,
alcohol,oil, grease and so on.
3.we can adjust the sizes according to your request.
4.special sizes can be produced
܄ᇅ̼Metric thread NBL-M
NBL-03M M16*1.5 4-8 MCR-03 10 1/4" M16*1.5 8 50
NBL-04M M16*1.5 6-10 MCR-04 13 3/8" M16*1.5 11 50
NBL-05M M20*1.5 8-12 MCR-05 16 1/2" M20*1.5 14 50
NBL-06M M25*1.5 8-12 MCR-06 20 3/4" M25*1.5 14 50
NBL-08M M32*1.5 15-21 MCR-08 25 1" M32*1.5 15 50
NBL-10M M40*1.5 18-25 MCR-10 32 11/4" M40*1.5 15 25
NBL-12M M50*1.5 26-32 MCR-12 38 11/2 M50*1.5 16 25
NBL-16M M63*1.5 37-44 MCR-16 51 2" M63*1.5 18 10
NBL-20M M72*2 42-52 MCR-20 64 21/2" M72*2 22 10
NBL-24M M88*2 55-62 MCR-24 80 3" M88*2 22 5
NBL-32M M 114*2 78-84 MCR-32 100 4" M 114*2 24 5
֣ᇅ໕ /Metric thread NBL-P
NBL-03P PG9 4-8 MCR-03 10 1/4" 15.2 8 50
NBL-04P PG 11 6-10 MCR-04 13 3/8" 18.6 9 50
NBL-05P PG13.5 8-12 MCR-05 16 1/2" 20.4 11 50
NBL-06P PG21 13-18 MCR-06 20 3/4" 28.3 14 50
NBL-08P PG29 18-25 MCR-08 25 1" 37.0 15 50
NBL-10P PG29 18-25 MCR-10 32 11/4" 37.0 15 25
NBL-12P PG36 26-32 MCR-12 38 11/2 47.0 16 25
NBL-16P PG48 37-44 MCR-16 51 2" 59.3 18 10
ܵ໕ /Tube thread NBL-G
NBL-03G G3/8" 4-8 MCR-03 10 1/4" 16.66 8 50
NBL-04G G3/8" 6-10 MCR-04 13 3/8" 16.66 8 50
NBL-05G G1/2" 8-12 MCR-05 16 1/2" 20.95 11 50
NBL-06G G3/4" 13-18 MCR-06 20 3/4" 26.44 14 50
NBL-08G G1" 15-21 MCR-08 25 1" 33.25 15 50
NBL-10G G1 1/4" 22-28 MCR-10 32 11/4" 41.91 15 25
NBL-12G G1 1/2" 26-32 MCR-12 38 11/2 47.8 16 25
NBL-16G G2" 37-44 MCR-16 51 2" 59.6 18 10
Material:A.C.F.I are made from Brass metal.B.E are made of rubber
NBR).D is made of sheet iron
Certificates:CE,ROHS
Color:Argentine(yellow)
Protect:IP67,if request IP68, need to use with RCCN SCM connectors
Operate T.:-40°C to 100°C,120°C in a short time.
Products characteristics: 1.thickness added zincic metal,good looking
2.conmmon impregnant resistant,such as water,salty,
alcohol,oil, grease and so on.
3.we can adjust the sizes according to your request.
4.special sizes can be produced
܄ᇅ̼Metric thread NBL-M
NBL-03M M16*1.5 4-8 MCR-03 10 1/4" M16*1.5 8 50
NBL-04M M16*1.5 6-10 MCR-04 13 3/8" M16*1.5 11 50
NBL-05M M20*1.5 8-12 MCR-05 16 1/2" M20*1.5 14 50
NBL-06M M25*1.5 8-12 MCR-06 20 3/4" M25*1.5 14 50
NBL-08M M32*1.5 15-21 MCR-08 25 1" M32*1.5 15 50
NBL-10M M40*1.5 18-25 MCR-10 32 11/4" M40*1.5 15 25
NBL-12M M50*1.5 26-32 MCR-12 38 11/2 M50*1.5 16 25
NBL-16M M63*1.5 37-44 MCR-16 51 2" M63*1.5 18 10
NBL-20M M72*2 42-52 MCR-20 64 21/2" M72*2 22 10
NBL-24M M88*2 55-62 MCR-24 80 3" M88*2 22 5
NBL-32M M 114*2 78-84 MCR-32 100 4" M 114*2 24 5
֣ᇅ໕ /Metric thread NBL-P
NBL-03P PG9 4-8 MCR-03 10 1/4" 15.2 8 50
NBL-04P PG 11 6-10 MCR-04 13 3/8" 18.6 9 50
NBL-05P PG13.5 8-12 MCR-05 16 1/2" 20.4 11 50
NBL-06P PG21 13-18 MCR-06 20 3/4" 28.3 14 50
NBL-08P PG29 18-25 MCR-08 25 1" 37.0 15 50
NBL-10P PG29 18-25 MCR-10 32 11/4" 37.0 15 25
NBL-12P PG36 26-32 MCR-12 38 11/2 47.0 16 25
NBL-16P PG48 37-44 MCR-16 51 2" 59.3 18 10
ܵ໕ /Tube thread NBL-G
NBL-03G G3/8" 4-8 MCR-03 10 1/4" 16.66 8 50
NBL-04G G3/8" 6-10 MCR-04 13 3/8" 16.66 8 50
NBL-05G G1/2" 8-12 MCR-05 16 1/2" 20.95 11 50
NBL-06G G3/4" 13-18 MCR-06 20 3/4" 26.44 14 50
NBL-08G G1" 15-21 MCR-08 25 1" 33.25 15 50
NBL-10G G1 1/4" 22-28 MCR-10 32 11/4" 41.91 15 25
NBL-12G G1 1/2" 26-32 MCR-12 38 11/2 47.8 16 25
NBL-16G G2" 37-44 MCR-16 51 2" 59.6 18 10
