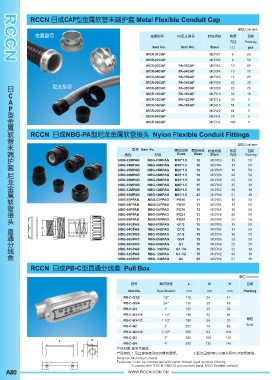

Page 100 - 上海日成品牌 RCCN 线槽 电缆接头 尼龙扎带 尼龙软管 接线端子

MCR-01CAP MCR01 6 50
MCR-02CAP MCR02 8 50
MCR-03CAP PA-03CAP MCR03 10 50

MCR-04CAP PA-04CAP MCR04 13 50

MCR-05CAP PA-05CAP MCR05 16 25
MCR-06CAP PA-06CAP MCR06 20 25

MCR-08CAP PA-08CAP MCR08 25 25

MCR-10CAP PA-10CAP MCR10 32 10
MCR-12CAP PA-12CAP MCR12 38 5
MCR-16CAP PA-16CAP MCR16 51 5
MCR-20CAP MCR20 64 5
MCR-24CAP MCR24 75 5
MCR-32CAP MCR32 100 5

NBG-03MPAB NBG-03MPAG M16*1.5 10 MCR03 10 50
NBG-04MPAB NBG-04MPAG M16*1.5 10 MCR04 13 50
MCR05
NBG-05MPAB NBG-05MPAG M20*1.5 10 16 50
MCR06
NBG-06MPAB NBG-06MPAG M25*1.5 10 20 50
NBG-08MPAB NBG-08MPAG M32*1.5 10 MCR08 25 20
NBG-10MPAB NBG-10MPAG M40*1.5 15 MCR10 32 10
MCR12
NBG-12MPAB NBG-12MPAG M50*1.5 15 38 10
MCR16
NBG-16MPAB NBG-16MPAG M63*1.5 25 51 10
NBG-03PPAB NBG-03PPAG PG16 11 MCR03 10 50
NBG-04PPAB NBG-04PPAG PG16 11 MCR04 13 50
MCR05
NBG-05PPAB NBG-05PPAG PG16 13 16 50
NBG-06PPAB NBG-06PPAG PG21 13 20 50
MCR06
NBG-08PPAB NBG-08PPAG PG29 13 MCR08 25 20
NBG-03GPAB NBG-03GPAG G1/2 15 MCR03 10 50
NBG-04GPAB NBG-04GPAG G1/2 15 MCR04 13 50
15
NBG-05GPAB NBG-05GPAG G1/2 MCR05 16 50
15
NBG-06GPAB NBG-06GPAG G3/4 MCR06 20 50
NBG-08GPAB NBG-08GPAG G1 15 MCR08 25 20
NBG-10GPAB NBG-10GPAG G1-1/4 15 MCR10 32 10
NBG-12GPAB NBG-12GPAG G1-1/2 15 38 10
MCR12
25
NBG-16GPAB NBG-16GPAG G2 MCR16 51 10

PB-C-G1/2 1/2″ 118 34 41
PB-C-G3/4 3/4″ 135 38 48
PB-C-G1 1″ 152 45 52
PB-C-G1-1/4 1 1/4″ 180 54 66
PB-C-G1-1/2 1 1/2″ 190 58 70
PB-C-G2 2″ 252 74 82
PB-C-G2-1/2 2 1/2″ 265 93 110
PB-C-G3 3” 280 108 120
PB-C-G4 4” 300 132 140

Material:Aluminium metal
Features:1.can be connected with outer thread rigid conduit directly
2.usded with RCCN NBG-G connectors amd ,MCR flexible conduit
