P. 36
Kind of thread:metric, PG,NPT 。
Material:A.C.D.F are made of NYLON .B.E are made of rubber NBR 。
Pretect grade is upto IP68 。
Color:white, black,other color can be manufactured
Use:Make this gland through the tpanel hole,then fixed it with nut,make
the cables through the seal nut, fix it with the locknut
ḤḤ܄ᇅ METRIC
AG-12SRW AG-12SRB M12 × 1.5 3-6.5 12 12-12.3 8 65 16/17
AG-16SRW AG-16SRB M16 × 1.5 4-8 16 16-16.3 8 65 19/20
AG-18SRW AG-18SRB M18 × 1.5 5-10 18 18-18.3 8 78 22
AG-20SRW AG-20SRB M20 × 1.5 6-12 20 20-20.3 9 90 24
AG-22SRW AG-22SRB M22 × 1.5 10-14 22 22-22.3 10 100 27
AG-25SRW AG-25SRB M25 × 1.5 13-18 25 25-25.4 10 112 33/34
AG-27SRW AG-27SRB M27 × 1.5 13-18 27 27-27.4 10 112 33/34
Ḥ ֣ᇅ Germany thread PG DIN
PG-7SRW PG-7SRB PG7 3-6.5 12.5 12.5 8 65 15/16
PG-9SRW PG-9SRB PG9 4-8 15.2 15.2 8 70 29/20
PG-11SRW PG-11SRBB PG11 5-10 18.6 18.6 8 78 22
PG-13.5SRW PG-13.5SRB PG13.5 6-12 20.4 20.4 9 90 24
PG-16SRW PG-16SRB PG16 10-14 22.5 22.5 10 100 27

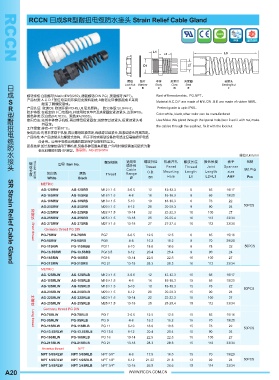

SR Strain Relief Cable Gland
PG-21SRW PG-21SRB PG 21 13-18 28.3 28.3 10 112 33/34
Ḥ܄ᇅḤMETRIC
AG-12SRLW AG-12SRLB M12 × 1.5 3-6.5 12 12-12.3 15 65 16/17
AG-16SRLW AG-16SRLB M16 × 1.5 4-8 16 16-16.3 15 65 19/20
AG-18SRLW AG-18SRLB M18 × 1.5 5-10 18 18-18.3 15 78 22
AG-20SRLW AG-20SRLB M20 × 1.5 6-12 20 20-20.3 15 90 24
AG-22SRLW AG-22SRLB M22 × 1.5 10-14 22 22-22.3 15 100 27
AG-25SRLW AG-25SRLB M25 × 1.5 13-18 25 25-25.4 15 112 33/34
Ḥ֣ᇅ Germany thread PG DIN
PG-7SRLW PG-7SRLB PG 7 3-6.5 12.5 12.5 15 65 15/16
PG-9SRLW PG-9SRLB PG 9 4-8 15.2 15.2 15 70 19/20
PG-11SRLW PG-11SRLB PG 11 5-10 18.6 18.6 15 78 22
PG-13.5SRLW PG-13.5SRLB PG 13.5 6-12 20.4 20.4 15 90 24
PG-16SRLW PG-16SRLB PG 16 10-14 22.5 22.5 15 100 27
PG-21SRLW PG-21SRLB PG 21 13-18 28.3 28.3 15 112 33/34
Ḥૅᇅ America thread NPT
NPT 3/8SRLW NPT 3/8SRLB NPT 3/8" 4-8 17.5 16.5 15 70 19/20
NPT 1/2SRLW NPT 1/2SRLB NPT 1/2" 6-12 21.22 21.3 13 92 24
NPT 3/4SRLW NPT 3/4SRLB NPT 3/4" 13-18 26.5 26.6 15 114 33/34
Material:A.C.D.F are made of NYLON .B.E are made of rubber NBR 。
Pretect grade is upto IP68 。
Color:white, black,other color can be manufactured
Use:Make this gland through the tpanel hole,then fixed it with nut,make
the cables through the seal nut, fix it with the locknut
ḤḤ܄ᇅ METRIC
AG-12SRW AG-12SRB M12 × 1.5 3-6.5 12 12-12.3 8 65 16/17
AG-16SRW AG-16SRB M16 × 1.5 4-8 16 16-16.3 8 65 19/20
AG-18SRW AG-18SRB M18 × 1.5 5-10 18 18-18.3 8 78 22
AG-20SRW AG-20SRB M20 × 1.5 6-12 20 20-20.3 9 90 24
AG-22SRW AG-22SRB M22 × 1.5 10-14 22 22-22.3 10 100 27
AG-25SRW AG-25SRB M25 × 1.5 13-18 25 25-25.4 10 112 33/34
AG-27SRW AG-27SRB M27 × 1.5 13-18 27 27-27.4 10 112 33/34
Ḥ ֣ᇅ Germany thread PG DIN
PG-7SRW PG-7SRB PG7 3-6.5 12.5 12.5 8 65 15/16
PG-9SRW PG-9SRB PG9 4-8 15.2 15.2 8 70 29/20
PG-11SRW PG-11SRBB PG11 5-10 18.6 18.6 8 78 22
PG-13.5SRW PG-13.5SRB PG13.5 6-12 20.4 20.4 9 90 24
PG-16SRW PG-16SRB PG16 10-14 22.5 22.5 10 100 27
SR Strain Relief Cable Gland
PG-21SRW PG-21SRB PG 21 13-18 28.3 28.3 10 112 33/34
Ḥ܄ᇅḤMETRIC
AG-12SRLW AG-12SRLB M12 × 1.5 3-6.5 12 12-12.3 15 65 16/17
AG-16SRLW AG-16SRLB M16 × 1.5 4-8 16 16-16.3 15 65 19/20
AG-18SRLW AG-18SRLB M18 × 1.5 5-10 18 18-18.3 15 78 22
AG-20SRLW AG-20SRLB M20 × 1.5 6-12 20 20-20.3 15 90 24
AG-22SRLW AG-22SRLB M22 × 1.5 10-14 22 22-22.3 15 100 27
AG-25SRLW AG-25SRLB M25 × 1.5 13-18 25 25-25.4 15 112 33/34
Ḥ֣ᇅ Germany thread PG DIN
PG-7SRLW PG-7SRLB PG 7 3-6.5 12.5 12.5 15 65 15/16
PG-9SRLW PG-9SRLB PG 9 4-8 15.2 15.2 15 70 19/20
PG-11SRLW PG-11SRLB PG 11 5-10 18.6 18.6 15 78 22
PG-13.5SRLW PG-13.5SRLB PG 13.5 6-12 20.4 20.4 15 90 24
PG-16SRLW PG-16SRLB PG 16 10-14 22.5 22.5 15 100 27
PG-21SRLW PG-21SRLB PG 21 13-18 28.3 28.3 15 112 33/34
Ḥૅᇅ America thread NPT
NPT 3/8SRLW NPT 3/8SRLB NPT 3/8" 4-8 17.5 16.5 15 70 19/20
NPT 1/2SRLW NPT 1/2SRLB NPT 1/2" 6-12 21.22 21.3 13 92 24
NPT 3/4SRLW NPT 3/4SRLB NPT 3/4" 13-18 26.5 26.6 15 114 33/34
