P. 18
*Time saving, cable can be easily once inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*Material: Polyamide
Neoprene for seal insert, with nut
*Color: Black, White
AG-12W AG-12B M12 × 1.5 3-6.5 12 12-12.3 8 22 17/16
AG-14W AG-14B M14 × 1.5 4-8 14 14-14.3 8 26 19/19
AG-16W AG-16B M16 × 1.5 4-8 16 16-16.3 9 26 22/19
AG-16DW AG-16DB M16 × 1.5 5-10 16 16-16.3 9 26 22/22
AG-18W AG-18B M18 × 1.5 5-10 18 18-18.3 9 27 24/22
AG-20W AG-20B M20 × 1.5 6-12 20 20-20.3 11 28 27/24
AG-20DW AG-20DB M20 × 1.5 10-14 20 20-20.3 10 28 27/27
AG-22W AG-22B M22 × 1.5 10-14 22 22-22.3 11 30 30/27
AG-24W AG-24B M24 × 1.5 12-15 24 24-24.4 10 30 30/27
AG-25SW AG-25SB M25 × 1.5 9-16 25 25-25.4 10 35 32/33
AG-25W AG-25B M25 × 1.5 13-18 25 25-25.4 10 35 32/33
AG-27W AG-27B M27 × 1.5 13-18 27 27-27.4 10 35 36/33
AG-30W AG-30B M30 × 1.5 16-21 30 30-30.4 12 35 37/36
AG-32W AG-32B M32 × 1.5 16-21 32 32-32.4 11 35 39/37
AG-32DW AG-32DB M32 × 1.5 18-25 32 32-32.4 12 40 39/42
AG-36W AG-36B M36 × 1.5 18-25 36 36-36.4 12 40 45-41/42
AG-40W AG-40B M40 × 1.5 22-32 40 40-40.4 14 48 50/53
AG-50W AG-50B M50 × 1.5 32-38 50 50-50.4 14 49 60/61

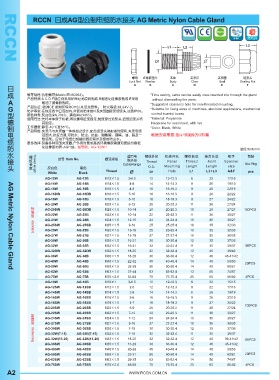

AG Metric Nylon Cable Gland
AG-63W AG-63B M63 × 1.5 37-44 63 63-63.4 13 50 74/67
AG-75W AG-75B M75 × 2.0 53-60 75 75-75.4 25 65 86/82
AG-10W AG-10B M10 × 1 3-6.5 12 12-12.3 8 22 15/15
AG-12SW AG-12SB M12 × 1.5 2-5 12 12-12.3 8 22 17/16
AG-14SW AG-14SB M14 × 1.5 2-6 14 14-14.3 8 26 19/19
AG-16SW AG-16SB M16 × 1.5 2-6 16 16-16.3 9 26 22/19
AG-18SW AG-18SB M18 × 1.5 3-7 18 18-18.3 9 27 24/22
AG-20SW AG-20SB M20 × 1.5 5-9 20 20-20.3 11 28 27/24
AG-22SW AG-22SB M22 × 1.5 7-12 22 22-22.3 11 30 30/27
AG-24SW AG-24SB M24 × 1.5 7-12 24 24-24.4 10 30 30/27
AG-27SW AG-27SB M27 × 1.5 9-16 27 27-27.4 10 35 36/33
AG-30SW AG-30SB M30 × 1.5 7-15 30 30-30.4 12 35 37/36
AG-32W(7-15) AG-32B(7-15) M32 × 1.5 7-15 32 32-32.4 11 35 39/37
AG-32W(13-20) AG-32B(13-20) M32 × 1.5 18-25 32 32-32.4 12 40 39-41/42
AG-36SW AG-36SB M36 × 1.5 13-20 36 36-36.4 12 40 45-41/42
AG-40SW AG-40SB M40 × 1.5 20-26 40 40-40.4 14 48 50/53
AG-50SW AG-50SB M50 × 1.5 25-31 50 50-50.4 14 49 60/61
AG-63SW AG-63SB M63 × 1.5 29-35 63 63-63.4 14 50 74/67
AG-75SW AG-75SB M75 × 2.0 48-55 75 75-75.4 25 65 86-82
