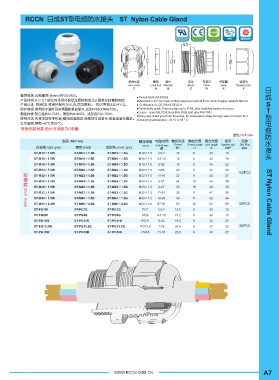

P. 23
●Thread:Metric/EN50262
●Material:A.C.D.F are made of Rohs approved nylon,B.E are made of aging resistant Silicone
● Certificates:UL,CE,ROHS,REACH.
●Flammibility grade:Protect grade:up to IP 68, after installing washer and seal.
●Colorsğgray RAL7035,black RAL9005,light gray RAL7001.
●Using way:insert gland into the panel, fix screw,input cables through seal nut F,then fix it.
●Operating temperature: -40 °C to 85 ° C.
ST-M12 × 1.5W ST-M12 × 1.5B ST-M12 × 1.5G M12 × 1.5 3.5-7 12 8 30 15
ST-M16 × 1.5W ST-M16 × 1.5B ST-M16 × 1.5G M16 × 1.5 4.5-10 16 8 34 19
ST-M18 × 1.5W ST-M18 × 1.5B ST-M18 × 1.5G M18 × 1.5 6-12 18 8 34 22
ST-M20 × 1.5W ST-M20 × 1.5B ST-M20 × 1.5G M20 × 1.5 7-13 20 9 37 25
ST-M22 × 1.5W ST-M22 × 1.5B ST-M22 × 1.5G M22 × 1.5 11-16 22 9 40 27
ST-M24 × 1.5W ST-M24 × 1.5B ST-M24 × 1.5G M24 × 1.5 9-17 24 10 40 30
ST-M25 × 1.5W ST-M25 × 1.5B ST-M25 × 1.5G M25 × 1.5 9-17 25 10 40 30
ST-M32 × 1.5W ST-M32 × 1.5B ST-M32 × 1.5G M32 × 1.5 11-21 32 11 47 36
ST-M40 × 1.5G
ST-M40 × 1.5W ST-M40 × 1.5B M40 × 1.5 19-28 40 11 52 46 ST Nylon Cable Gland
ST-M50 × 2.0W ST-M50 × 2.0B M50 × 2.0 27-35 50 12 62 55
ST-M50 × 2.0G
ST-PG7W ST-PG7B ST-PG7G PG7 3.5-7 12.5 8 30 15
ST-PG9W ST-PG9B ST-PG9G PG9 4.5-10 15.2 8 34 19
ST-PG11W ST-PG11B ST-PG11G PG11 6-12 18.6 8 22 34
ST-PG13.5W ST-PG13.5B ST-PG13.5G PG13.5 7-13 20.4 9 37 25
ST-PG16W ST-PG16B ST-PG16G PG16 11-16 22.5 9 40 27
●Material:A.C.D.F are made of Rohs approved nylon,B.E are made of aging resistant Silicone
● Certificates:UL,CE,ROHS,REACH.
●Flammibility grade:Protect grade:up to IP 68, after installing washer and seal.
●Colorsğgray RAL7035,black RAL9005,light gray RAL7001.
●Using way:insert gland into the panel, fix screw,input cables through seal nut F,then fix it.
●Operating temperature: -40 °C to 85 ° C.
ST-M12 × 1.5W ST-M12 × 1.5B ST-M12 × 1.5G M12 × 1.5 3.5-7 12 8 30 15
ST-M16 × 1.5W ST-M16 × 1.5B ST-M16 × 1.5G M16 × 1.5 4.5-10 16 8 34 19
ST-M18 × 1.5W ST-M18 × 1.5B ST-M18 × 1.5G M18 × 1.5 6-12 18 8 34 22
ST-M20 × 1.5W ST-M20 × 1.5B ST-M20 × 1.5G M20 × 1.5 7-13 20 9 37 25
ST-M22 × 1.5W ST-M22 × 1.5B ST-M22 × 1.5G M22 × 1.5 11-16 22 9 40 27
ST-M24 × 1.5W ST-M24 × 1.5B ST-M24 × 1.5G M24 × 1.5 9-17 24 10 40 30
ST-M25 × 1.5W ST-M25 × 1.5B ST-M25 × 1.5G M25 × 1.5 9-17 25 10 40 30
ST-M32 × 1.5W ST-M32 × 1.5B ST-M32 × 1.5G M32 × 1.5 11-21 32 11 47 36
ST-M40 × 1.5G
ST-M40 × 1.5W ST-M40 × 1.5B M40 × 1.5 19-28 40 11 52 46 ST Nylon Cable Gland
ST-M50 × 2.0W ST-M50 × 2.0B M50 × 2.0 27-35 50 12 62 55
ST-M50 × 2.0G
ST-PG7W ST-PG7B ST-PG7G PG7 3.5-7 12.5 8 30 15
ST-PG9W ST-PG9B ST-PG9G PG9 4.5-10 15.2 8 34 19
ST-PG11W ST-PG11B ST-PG11G PG11 6-12 18.6 8 22 34
ST-PG13.5W ST-PG13.5B ST-PG13.5G PG13.5 7-13 20.4 9 37 25
ST-PG16W ST-PG16B ST-PG16G PG16 11-16 22.5 9 40 27
