P. 20
Time saving, cable can be easily inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications,
mechanical control boards/ boxes.
*Material: Polyamide
Neoprene for seal insert, with nut
*Color: Black, White
PG-7W PG-7B PG7 3-6.5 12.5 12.5-12.8 8 22 18/16
PG-9W PG-9B PG9 4-8 15.2 15.2-15.8 8 26 22/19
PG-11W PG-11B PG11 5-10 18.6 18.6-18.9 9 27 24/22
PG-13.5W PG-13.5B PG13.5 6-12 20.4 20.4-20.7 9 28 27/24
PG-16W PG-16B PG16 10-14 22.5 22.5-22.8 10 30 30/27
PG-19W PG-19B PG19 12-15 24.1 24.1-24.5 10 30 30/28
PG-21W PG-21B PG21 13-18 28.3 28.3-28.7 10 35 36/33
PG-25W PG-25B PG25 16-21 30.1 30.1-30.3 11 34 37/36

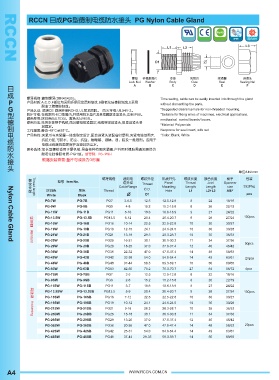

Nylon Cable Gland
PG-29W PG-29B PG29 18-25 37.0 37.0-37.4 12 40 45/42
PG-36W PG-36B PG36 22-32 47.0 47.0-47.4 14 48 58/53
PG-42W PG-42B PG42 32-38 54.0 54.0-54.4 14 49 63/61
PG-48W PG-48B PG48 37-44 59.3 59.3-59.7 15 50 69/65
PG-63W PG-63B PG63 42-50 70.2 70.3-70.7 27 84 86/72
PG-7SW PG-7SB PG7 2-5 12.5 12.5-12.8 8 22 18/16
PG-9SW PG-9SB PG9 2-6 15.2 15.2-15.8 8 26 22/19
PG-11SW PG-11SB PG11 3-7 18.6 18.6-18.9 8 27 24/22
PG-13.5SW PG-13.5SB PG13.5 5-9 20.4 20.4-20.7 9 28 27/24
PG-16SW PG-16SB PG16 7-12 22.5 22.5-22.8 10 30 30/27
PG-19SW PG-19SB PG19 10-12 24.1 24.1-24.5 10 30 30/28
PG-21SW PG-21SB PG21 9-16 28.3 28.3-28.7 10 35 36/33
PG-25DW PG-25DB PG25 13-18 30.1 30.1-30.3 11 34 37/36
PG-29SW PG-29SB PG29 13-20 37.0 37.0-37.4 12 40 45/42
PG-36SW PG-36SB PG36 20-26 47.0 47.0-47.4 14 48 58/53
PG-42SW PG-42SB PG42 25-31 54.0 54.0-54.4 14 49 63/61
PG-48SW PG-48SB PG48 37-44 29-35 59.3-59.7 14 50 69/65
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications,
mechanical control boards/ boxes.
*Material: Polyamide
Neoprene for seal insert, with nut
*Color: Black, White
PG-7W PG-7B PG7 3-6.5 12.5 12.5-12.8 8 22 18/16
PG-9W PG-9B PG9 4-8 15.2 15.2-15.8 8 26 22/19
PG-11W PG-11B PG11 5-10 18.6 18.6-18.9 9 27 24/22
PG-13.5W PG-13.5B PG13.5 6-12 20.4 20.4-20.7 9 28 27/24
PG-16W PG-16B PG16 10-14 22.5 22.5-22.8 10 30 30/27
PG-19W PG-19B PG19 12-15 24.1 24.1-24.5 10 30 30/28
PG-21W PG-21B PG21 13-18 28.3 28.3-28.7 10 35 36/33
PG-25W PG-25B PG25 16-21 30.1 30.1-30.3 11 34 37/36
Nylon Cable Gland
PG-29W PG-29B PG29 18-25 37.0 37.0-37.4 12 40 45/42
PG-36W PG-36B PG36 22-32 47.0 47.0-47.4 14 48 58/53
PG-42W PG-42B PG42 32-38 54.0 54.0-54.4 14 49 63/61
PG-48W PG-48B PG48 37-44 59.3 59.3-59.7 15 50 69/65
PG-63W PG-63B PG63 42-50 70.2 70.3-70.7 27 84 86/72
PG-7SW PG-7SB PG7 2-5 12.5 12.5-12.8 8 22 18/16
PG-9SW PG-9SB PG9 2-6 15.2 15.2-15.8 8 26 22/19
PG-11SW PG-11SB PG11 3-7 18.6 18.6-18.9 8 27 24/22
PG-13.5SW PG-13.5SB PG13.5 5-9 20.4 20.4-20.7 9 28 27/24
PG-16SW PG-16SB PG16 7-12 22.5 22.5-22.8 10 30 30/27
PG-19SW PG-19SB PG19 10-12 24.1 24.1-24.5 10 30 30/28
PG-21SW PG-21SB PG21 9-16 28.3 28.3-28.7 10 35 36/33
PG-25DW PG-25DB PG25 13-18 30.1 30.1-30.3 11 34 37/36
PG-29SW PG-29SB PG29 13-20 37.0 37.0-37.4 12 40 45/42
PG-36SW PG-36SB PG36 20-26 47.0 47.0-47.4 14 48 58/53
PG-42SW PG-42SB PG42 25-31 54.0 54.0-54.4 14 49 63/61
PG-48SW PG-48SB PG48 37-44 29-35 59.3-59.7 14 50 69/65
