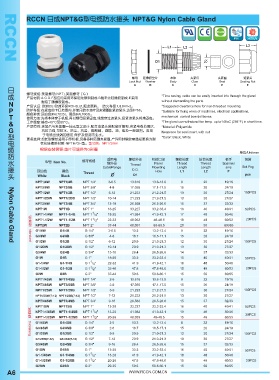

P. 22
*Time saving, cable can be easily inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications,
mechanical control boards/ boxes.
*The gland can withstand the temp. up to140oC (284°F) in short time.
*Material: Polyamide
Neoprene for seal insert, with nut
*Color: Black, White
NPT1/4W NPT1/4B NPT 1/4" 3-6.5 13.616 13.6-13.9 8 22 19/16
NPT3/8W NPT3/8B NPT 3/8" 4-8 17.055 17.1-17.5 15 26 24/19
NPT1/2W NPT1/2B NPT 1/2" 6-12 21.223 21.2-21.5 13 30 27/24
NPT1/2DW NPT1/2DB NPT 1/2" 10-14 21.223 21.2-21.5 13 30 27/27
NPT3/4W NPT3/4B NPT 3/4" 13-18 26.568 26.5-26.6 15 37 32/33
NPT1W NPT1B NPT 1" 18-25 33.227 33.2-33.4 16 40 40/41
1
NPT1-1/4W NPT1-1/4B NPT 1/4" 18-25 41.984 41.9-42.1 17 48 50/46
1
NPT1-1/2W NPT1-1/2B NPT 1/2" 22-32 48.053 48-48.5 18 49 60/53
NPT2W NPT2B NPT 2" 37-44 60.091 60-60.5 20 50 69//65
G1/4W G1/4B G 1/4" 3-6.5 13.2 13.2-13.4 9 22 19/16
G3/8W G3/8B G 3/8" 4-8 16.7 16.5-17.1 15 26 24/19
Nylon Cable Gland
G1/2W G1/2B G 1/2" 6-12 20.9 21.0-21.3 12 30 27/24
G1/2DW G1/2DB G 1/2" 10-14 20.9 21.0-21.3 13 30 27/27
G3/4W G3/4B G 3/4" 13-18 26.4 26.5-26.6 14 37 32/33
G1W G1B G 1" 18-25 33.2 33.2-33.4 15 40 40/41
1
G1-1/4W G1-1/4B G 1 /4" 22-32 41.9 41.9-42.1 18 48 50/46
1
G1-1/2W G1-1/2B G 1 /2" 32-48 47.8 47.8-48.0 15 49 60/53
G2W G2B G 2" 37-44 59.6 59.6-60.1 15 50 69/65
NPT1/4SW NPT1/4SB NPT 1/4" 2-5 13.616 13.6-13.9 8 22 19/16
NPT3/8SW NPT3/8SB NPT 3/8" 2-6 17.055 17.1-17.5 15 26 24/19
NPT1/2SW NPT1/2SB NPT 1/2" 5-9 21.223 21.2-21.5 13 30 27/24
NPT1/2SW(7-12) NPT1/2SB(7-12) NPT 1/2" 7-12 21.223 21.2-21.5 13 30 27/27
NPT3/4SW NPT3/4SB NPT 3/4" 9-16 26.568 26.5-26.6 15 37 32/33
NPT1SW NPT1SB NPT 1" 13-20 33.227 33.2-33.4 16 40 40/41
1
NPT1-1/4SW NPT1-1/4SB NPT 1/4" 13-20 41.984 41.9-42.1 18 48 50/46
1
NPT1-1/2SW NPT1-1/2SB NPT 1/2" 20-26 48.053 48-48.5 15 49 60/53
G1/4SW G1/4SB G 1/4" 2-5 13.2 13.2-13.4 8 22 19/16
G3/8SW G3/8SB G 3/8" 2-6 16.7 16.5-17.1 15 26 24/19
G1/2SW G1/2SB G 1/2" 5-9 20.9 21.0-21.3 13 30 27/24
G1/2SW(7-12) G1/2SB(7-12) G 1/2" 7-12 20.9 21.0-21.3 13 30 27/27
G3/4SW G3/4SB G 3/4" 9-16 26.4 26.5-26.6 15 37 32/33
G1SW G1SB G 1" 13-20 33.2 33.2-33.4 16 40 40/41
1
G1-1/4SW G1-1/4SB G 1 /4" 13-20 41.9 41.9-42.1 18 48 50/46
1
G1-1/2SW G1-1/2SB G 1 /2" 20-26 47.8 47.8-48.0 15 49 60/53
G2SW G2SB G 2" 29-35 59.6 59.6-60.1 15 50 69/65
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications,
mechanical control boards/ boxes.
*The gland can withstand the temp. up to140oC (284°F) in short time.
*Material: Polyamide
Neoprene for seal insert, with nut
*Color: Black, White
NPT1/4W NPT1/4B NPT 1/4" 3-6.5 13.616 13.6-13.9 8 22 19/16
NPT3/8W NPT3/8B NPT 3/8" 4-8 17.055 17.1-17.5 15 26 24/19
NPT1/2W NPT1/2B NPT 1/2" 6-12 21.223 21.2-21.5 13 30 27/24
NPT1/2DW NPT1/2DB NPT 1/2" 10-14 21.223 21.2-21.5 13 30 27/27
NPT3/4W NPT3/4B NPT 3/4" 13-18 26.568 26.5-26.6 15 37 32/33
NPT1W NPT1B NPT 1" 18-25 33.227 33.2-33.4 16 40 40/41
1
NPT1-1/4W NPT1-1/4B NPT 1/4" 18-25 41.984 41.9-42.1 17 48 50/46
1
NPT1-1/2W NPT1-1/2B NPT 1/2" 22-32 48.053 48-48.5 18 49 60/53
NPT2W NPT2B NPT 2" 37-44 60.091 60-60.5 20 50 69//65
G1/4W G1/4B G 1/4" 3-6.5 13.2 13.2-13.4 9 22 19/16
G3/8W G3/8B G 3/8" 4-8 16.7 16.5-17.1 15 26 24/19
Nylon Cable Gland
G1/2W G1/2B G 1/2" 6-12 20.9 21.0-21.3 12 30 27/24
G1/2DW G1/2DB G 1/2" 10-14 20.9 21.0-21.3 13 30 27/27
G3/4W G3/4B G 3/4" 13-18 26.4 26.5-26.6 14 37 32/33
G1W G1B G 1" 18-25 33.2 33.2-33.4 15 40 40/41
1
G1-1/4W G1-1/4B G 1 /4" 22-32 41.9 41.9-42.1 18 48 50/46
1
G1-1/2W G1-1/2B G 1 /2" 32-48 47.8 47.8-48.0 15 49 60/53
G2W G2B G 2" 37-44 59.6 59.6-60.1 15 50 69/65
NPT1/4SW NPT1/4SB NPT 1/4" 2-5 13.616 13.6-13.9 8 22 19/16
NPT3/8SW NPT3/8SB NPT 3/8" 2-6 17.055 17.1-17.5 15 26 24/19
NPT1/2SW NPT1/2SB NPT 1/2" 5-9 21.223 21.2-21.5 13 30 27/24
NPT1/2SW(7-12) NPT1/2SB(7-12) NPT 1/2" 7-12 21.223 21.2-21.5 13 30 27/27
NPT3/4SW NPT3/4SB NPT 3/4" 9-16 26.568 26.5-26.6 15 37 32/33
NPT1SW NPT1SB NPT 1" 13-20 33.227 33.2-33.4 16 40 40/41
1
NPT1-1/4SW NPT1-1/4SB NPT 1/4" 13-20 41.984 41.9-42.1 18 48 50/46
1
NPT1-1/2SW NPT1-1/2SB NPT 1/2" 20-26 48.053 48-48.5 15 49 60/53
G1/4SW G1/4SB G 1/4" 2-5 13.2 13.2-13.4 8 22 19/16
G3/8SW G3/8SB G 3/8" 2-6 16.7 16.5-17.1 15 26 24/19
G1/2SW G1/2SB G 1/2" 5-9 20.9 21.0-21.3 13 30 27/24
G1/2SW(7-12) G1/2SB(7-12) G 1/2" 7-12 20.9 21.0-21.3 13 30 27/27
G3/4SW G3/4SB G 3/4" 9-16 26.4 26.5-26.6 15 37 32/33
G1SW G1SB G 1" 13-20 33.2 33.2-33.4 16 40 40/41
1
G1-1/4SW G1-1/4SB G 1 /4" 13-20 41.9 41.9-42.1 18 48 50/46
1
G1-1/2SW G1-1/2SB G 1 /2" 20-26 47.8 47.8-48.0 15 49 60/53
G2SW G2SB G 2" 29-35 59.6 59.6-60.1 15 50 69/65
