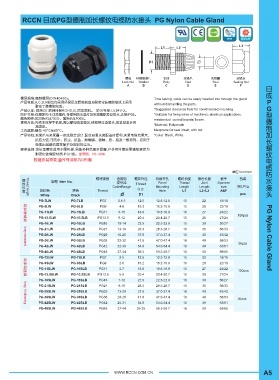

P. 21
Time saving, cable can be easily inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications,
mechanical control boards/ boxes.
*Material: Polyamide
Neoprene for seal insert, with nut
*Color: Black, White
PG-7LW PG-7LB PG7 3-6.5 12.5 12.5-12.8 15 22 18/16
PG-9LW PG-9LB PG9 4-8 15.2 15.2-15.8 15 26 22/19
PG-11LW PG-11LB PG11 5-10 18.6 18.6-18.9 15 27 24/22
PG-13.5LW PG-13.5LB PG13.5 6-12 20.4 20.4-20.7 15 28 27/24
PG-16LW PG-16LB PG16 10-14 22.5 22.5-22.8 15 30 30/27
PG-21LW PG-21LB PG21 13-18 28.3 28.3-28.7 15 35 36/33
PG-29LW PG-29LB PG29 18-25 37.0 37.0-37.4 18 PG Nylon Cable Gland 45/42
40
PG-36LW PG-36LB PG36 22-32 47.0 47.0-47.4 18 48 58/53
PG-42LW PG-42LB PG42 32-38 54.0 54.0-54.4 18 49 63/61
PG-48LW PG-48LB PG48 37-44 59.3 59.3-59.7 18 50 69/65
PG-7SLW PG-7SLB PG7 2-5 12.5 12.5-12.8 15 22 18/16
PG-9SLW PG-9SLB PG9 2-6 15.2 15.2-15.8 15 26 22/19
PG-11SLW PG-11SLB PG11 3-7 18.6 18.6-18.9 15 27 24/22
PG-13.5SLW PG-13.5SLB PG13.5 5-9 20.4 20.4-20.7 15 28 27/24
PG-16SLW PG-16SLB PG16 7-12 22.5 22.5-22.8 15 30 30/27
PG-21SLW PG-21SLB PG21 9-16 28.3 28.3-28.7 15 35 36/33
PG-29SLW PG-29SLB PG29 13-20 37.0 37.0-37.4 18 40 45/42
PG-36SLW PG-36SLB PG36 20-26 47.0 47.0-47.4 18 48 58/53
PG-42SLW PG-42SLB PG42 25-31 54.0 54.0-54.4 18 49 63/61
PG-48SLW PG-48SLB PG48 37-44 29-35 59.3-59.7 18 50 69/65
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications,
mechanical control boards/ boxes.
*Material: Polyamide
Neoprene for seal insert, with nut
*Color: Black, White
PG-7LW PG-7LB PG7 3-6.5 12.5 12.5-12.8 15 22 18/16
PG-9LW PG-9LB PG9 4-8 15.2 15.2-15.8 15 26 22/19
PG-11LW PG-11LB PG11 5-10 18.6 18.6-18.9 15 27 24/22
PG-13.5LW PG-13.5LB PG13.5 6-12 20.4 20.4-20.7 15 28 27/24
PG-16LW PG-16LB PG16 10-14 22.5 22.5-22.8 15 30 30/27
PG-21LW PG-21LB PG21 13-18 28.3 28.3-28.7 15 35 36/33
PG-29LW PG-29LB PG29 18-25 37.0 37.0-37.4 18 PG Nylon Cable Gland 45/42
40
PG-36LW PG-36LB PG36 22-32 47.0 47.0-47.4 18 48 58/53
PG-42LW PG-42LB PG42 32-38 54.0 54.0-54.4 18 49 63/61
PG-48LW PG-48LB PG48 37-44 59.3 59.3-59.7 18 50 69/65
PG-7SLW PG-7SLB PG7 2-5 12.5 12.5-12.8 15 22 18/16
PG-9SLW PG-9SLB PG9 2-6 15.2 15.2-15.8 15 26 22/19
PG-11SLW PG-11SLB PG11 3-7 18.6 18.6-18.9 15 27 24/22
PG-13.5SLW PG-13.5SLB PG13.5 5-9 20.4 20.4-20.7 15 28 27/24
PG-16SLW PG-16SLB PG16 7-12 22.5 22.5-22.8 15 30 30/27
PG-21SLW PG-21SLB PG21 9-16 28.3 28.3-28.7 15 35 36/33
PG-29SLW PG-29SLB PG29 13-20 37.0 37.0-37.4 18 40 45/42
PG-36SLW PG-36SLB PG36 20-26 47.0 47.0-47.4 18 48 58/53
PG-42SLW PG-42SLB PG42 25-31 54.0 54.0-54.4 18 49 63/61
PG-48SLW PG-48SLB PG48 37-44 29-35 59.3-59.7 18 50 69/65
