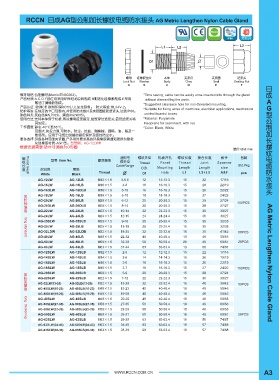

Page 19 - 上海日成品牌 RCCN 线槽 电缆接头 尼龙扎带 尼龙软管 接线端子
P. 19
*Time saving, cable can be easily once inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*Material: Polyamide
Neoprene for seal insert, with nut
*Color: Black, White
AG-12LW AG-12LB M12 × 1.5 3-6.5 12 12-12.3 15 22 17/16
AG-16LW AG-16LB M16 × 1.5 4-8 16 16-16.3 15 26 22/19
AG-16DLW AG-16DLB M16 × 1.5 5-10 16 16-16.3 15 26 22/22
AG-18LW AG-18LB M18 × 1.5 5-10 18 18-18.3 15 27 24/22
AG-20LW AG-20LB M20 × 1.5 6-12 20 20-20.3 15 28 27/24
AG-20DLW AG-20DLB M20 × 1.5 8-14 20 20-20.3 15 28 27/27
AG-22LW AG-22LB M22 × 1.5 10-14 22 22-22.3 15 30 30/27
AG-24LW AG-24LB M24 × 1.5 12-15 24 24-24.4 15 30 30/27
AG-25SLW AG-25SLB M25 × 1.5 9-16 25 25-25.4 15 35 32/33
AG-25LW AG-25LB M25 × 1.5 13-18 25 25-25.4 15 35 32/33
AG-32LDW AG-32LDB M32 × 1.5 18-25 32 32-32.4 16 35 41/42
AG-40LW AG-40LB M40 × 1.5 22-32 40 40-40.4 18 48 50/53
AG-50LW AG-50LB M50 × 1.5 32-38 50 50-50.4 20 49 60/61
AG-63LW AG-63LB M63 × 1.5 37-44 63 63-63.4 19 50 74/67
AG-12SLW AG-12SLB M12 × 1.5 2-5 12 12-12.3 15 22 17/16
AG-14SLW AG-14SLB M14 × 1.5 2-6 14 14-14.3 15 26 19/19
AG-16SLW AG-16SLB M16 × 1.5 2-6 16 16-16.3 15 26 AG Metric Lengthen Nylon Cable Gland 22/19
AG-18SLW AG-18SLB M18 × 1.5 3-7 18 18-18.3 15 27 24/22
AG-20SLW AG-20SLB M20 × 1.5 5-9 20 20-20.3 15 28 27/24
AG-22SLW AG-22SLB M22 × 1.5 7-12 22 22-22.3 15 30 30/27
AG-32LW(13-20) AG-32LB(13-20) M32 × 1.5 13-20 32 32-32.4 15 40 39/42
AG-40SLW(15-23) AG-40SLB(15-23) M40 × 1.5 15-23 40 40-40.4 18 48 50/46
AG-40SLW(19-28) AG-40SLB(19-28) 19-28 40 40-40.4 18 48 50/46
M40 × 1.5
AG-40SLW AG-40SLB M40 × 1.5 20-26 40 40-40.4 18 48 50/53
AG-50SLW(27-35) AG-50SLB(27-35) M50 × 1.5 27-35 50 50-50.4 18 49 60/56
AG-50SLW(22-29) AG-50SLB(22-29) 22-29 50 50-50.4 18 49 60/56
M50 × 1.5
AG-50SLW AG-50SLB M50 × 1.5 25-31 50 50-50.4 18 49 60/61
AG-63SLW AG-63SLB M63 × 1.5 29-35 63 63-63.4 19 50 74/67
AG-63DLW(34-45) AG-63DLB(34-45) M63 × 1.5 34-45 63 63-63.4 19 57 74/68
AG-63SLW(28-39) AG-63SLB(28-39) M63 × 1.5 28-39 63 63-63.4 19 57 74/68
